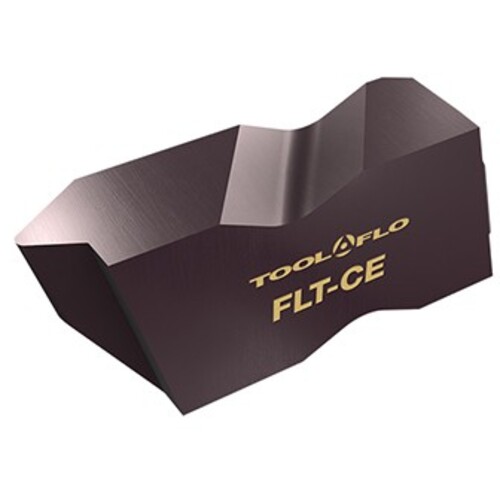

FLTC-3R11I AC50C
| Threads per Inch (TPI) | 11 | Thread Pitch Maximum (TPX) | 0.344 mm |
| Application | | Int Ext Threading Flo Lock | | Insert to Shank Reference | 0.107″ |
| Insert Thickness (S) | 0.195″ | Cutting Edge Length (L) | 0.4″ |
| Corner Radius (RE) | 0.005″ | Coating | TiAlN |
| Body Material | Carbide | Measurement Type | Inch |
| Grade | AC50C | Thread Form Type (THFT) | UN Am. Unified ANSI/ASME B1.1 |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Internal American UN Full Profile (UN, UNC, UNF, UNEF) FloLock Threading Inserts with Right Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Weight
0.22
