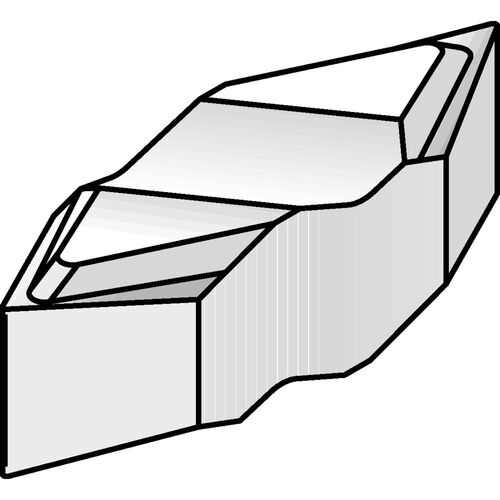

NTU4R TN6025 TOP THREAD THREADING INSERT

Additional Tariff Surcharge of 8.5 %
| Thread Pitch (TP) | 1.25 mm to 6.25 mm | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.004″ | Angle | 30 Degrees |
| Insert Thickness (S) | 0.27″ | Thread Pitch Maximum (TPX) | 6.25mm |
| Cutting Width (CW) | 1/4″ | Profile Included Angle (PNA) | Top Notch |
| Insert Size | #4 | Insert to Shank Reference | 1.25 mm |
| Grade | TN6025 | Pitch TPI External (TPI Ext) | 4-20 |
| Cutting Edge Material | Carbide | Pitch External | 1.25-6.25 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.031
