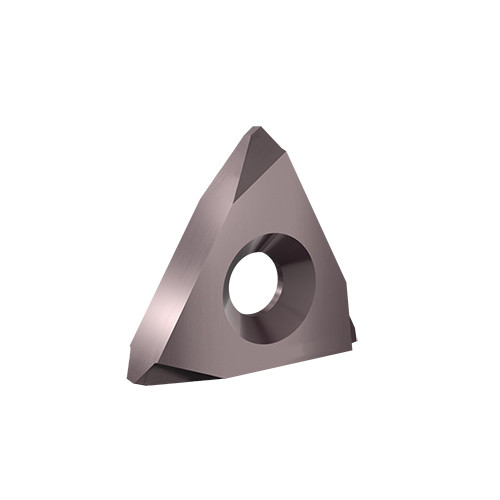

TNMC438PSTE W.0518 AC50C
| Threads per Inch (TPI) | 8 | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0″ | Application | | Int Ext Threading On Edge | |
| Insert Thickness (S) | 0.189″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Width (CW) | 0.052″ | Threads per Inch Maximum (TPIX) | 0 |
| Inscribed Circle Diameter (IC) | 1/2″ | Threads per Inch Minimum (TPIN) | 0 |
| Grade | AC50C | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | STUB ACME Am. Nat. B1.5 |
Product Features
| Family Description | External FloEdge TNMC Style Threading Inserts with STUB ACME Partial Profile with Modified Root Width | Country of Origin | USA |
Shipping Info
Package Weight
0.001
