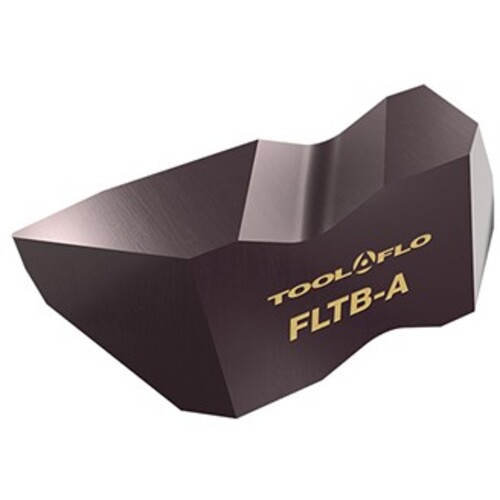

FLTB-2LB AC50C
| Application | | Int Ext Threading Flo Lock | | Insert to Shank Reference | 0.01″ |
| Insert Thickness (S) | 0.15″ | Cutting Edge Length (L) | 0.259″ |
| Corner Radius (RE) | 0.003″ | Coating | TiAlN |
| Body Material | Carbide | Measurement Type | Inch |
| Grade | AC50C | Threads per Inch Maximum (TPIX) | 20 |
| Cutting Direction (HAND) | Left Hand | Threads per Inch Minimum (TPIN) | 16 |
| Thread Pitch Maximum (TPX) | 0.219 mm | Thread Form Type (THFT) | ASB Buttress Am. St. 45?° Lead |
Product Features
| Family Description | Internal and External American Standard Buttress (45° Lead) Profile FloLock Inserts with Left Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Weight
0.08
