FLT 4R HCB AC22A
| Application | | Int Ext Threading Flo Lock | | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.255″ | Thread Pitch Maximum (TPX) | 0.453 mm |
| Corner Radius (RE) | 0.0065″ | Insert to Shank Reference | 0.128″ |
| Body Material | Carbide | Cutting Edge Length (L) | 0.63″ |
| Pitch TPI External (TPI Ext) | 4-20 Threads/" | Coating | TiAlN |
| Pitch TPI Internal (TPI Int) | 4-12 Threads/" | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | 60?° Partial V-Thread Profile |
| Grade | AC22A |
Product Features

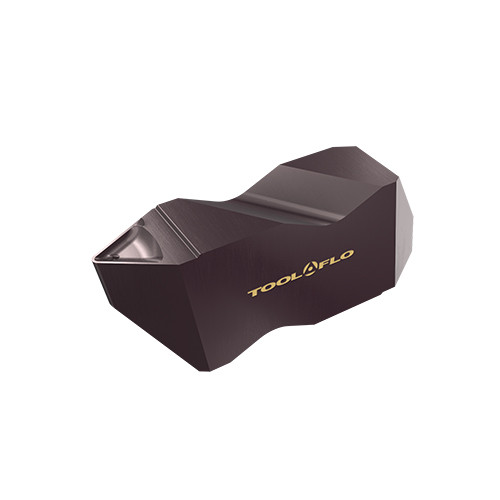

| Family Description | Internal and External 60° V-Thread Non-Topping Profile FloLock Inserts with Heavy Duty Chip Control and Right Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Weight
0.38
