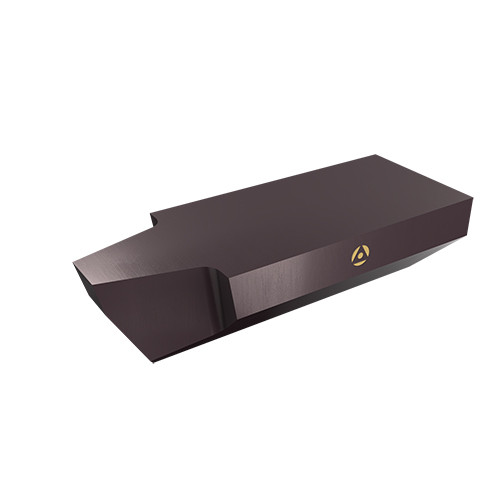

MLPE 3425 NT 4P AC22A
| Application | | Int Threading/Grooving Vee Bot | | Insert Length (INSL) | 5/8″ |
| Coating | TiAlN | Insert Thickness (S) | 1/4″ |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | ACME Am. Nat. 29° Angle B1.8 |
| Measurement Type | Inch | Threads per Inch (TPI) | 4 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Threads per Inch Maximum (TPIX) | 0 |
| Body Material | Carbide | Threads per Inch Minimum (TPIN) | 0 |
| Grade | AC22A | Insert Width (W1) | 1/4″ |
| Corner Radius (RE) | 0.0875″ | Central Flat (CF) | 0.087″ |
| Cutting Width (CW) | 0.087″ |
Product Features
| Family Description | Non-Topping Internal ACME Profile MLPE Style FloVee Threading Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.000
