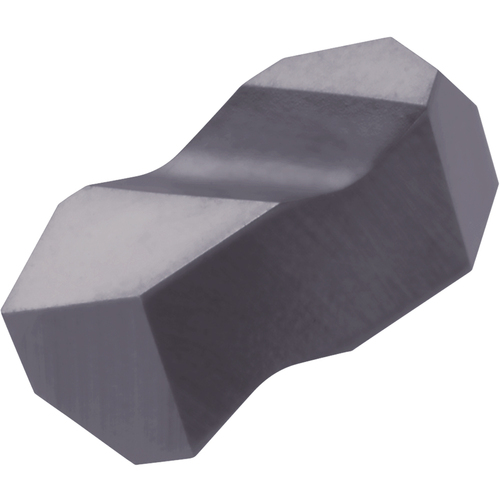

KCT 3R PR1215 INSERT
| Thread Standard | Metric (M) | Unified (UN) | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | External 1.25 mm - 4 mm | Internal 2 mm - 5 mm | Application | Internal & External Threading |
| Threads per Inch (TPI) | External 6-20 | Internal 5-12 | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.007″ | Number of Teeth | 2 |
| Insert Thickness (S) | 0.195″ | Profile Included Angle (PNA) | 60 Degrees |
| Insert Size | 3 | Series/List # | Cera-Notch |
| Grade | PR1215 | Mounting Style | Clamp |
| Coating | MEGACOAT | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Insert Style | KCT |
| Cutting Position | Internal & External |
Product Features
| Family Description | Alternate Manufacture # KCT3RPR1215 | Country of Origin | Japan |
Shipping Info
Package Weight
0.25
