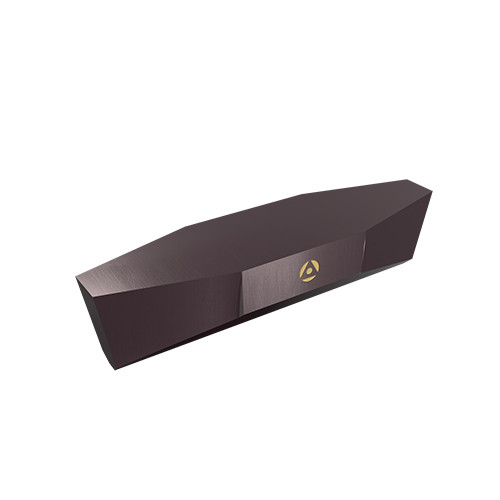

V85 NT 2P STUB AC50E
| Application | | Ext Threading/Grooving On Edge | Int Ext Threading Vee Bottom | | Cutting Width (CW) | 0.206″ |
| Coating | TiAlN | Insert Length (INSL) | 1″ |
| Cutting Edge Material | Carbide | Insert Thickness (S) | 0.312″ |
| Measurement Type | Inch | Thread Form Type (THFT) | STUB ACME Am. Nat. B1.5 |
| Applicable Material | | Steel | Stainless Steel | | Threads per Inch (TPI) | 2 |
| Body Material | Carbide | Threads per Inch Maximum (TPIX) | 0 |
| Grade | AC50E | Threads per Inch Minimum (TPIN) | 0 |
| Angle | 90 Degrees | Insert Width (W1) | 0.312″ |
| Corner Radius (RE) | 0.206″ | Central Flat (CF) | 0.206″ |
Product Features
| Family Description | Internal and External FloVee V85 Style Threading Inserts with STUB ACME Partial Profile | Country of Origin | USA |
Shipping Info
Package Weight
0.24
