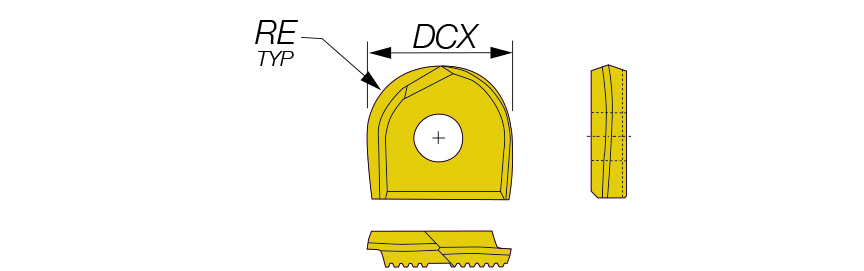

TBNR-20M-N ZS26D
Milling Insert; TBNR20MN ZS26D
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Body Diameter (INSBD) | 0 |
| Application | | Ext Milling Rigid Lock | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 10 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 4.98 mm | Tool Type | Single sided Inserts |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Grade | ZS26D | Measurement Type | Metric |
| Insert Style | TBNR | Body Material | Carbide |
| Insert Size | 20M | Cutting Diameter (DC) | 20 mm |
Product Features
| Family Description | RigidLock Ball Nose Style Milling Inserts with Neutral Flute | Country of Origin | USA |
Shipping Info
Package Weight
0.001
