NDCW 3205FRX KPD010 INSRT
Milling Insert; 0.2244″ Length × 1/8″ Thickness ; KPD010 ; PCD

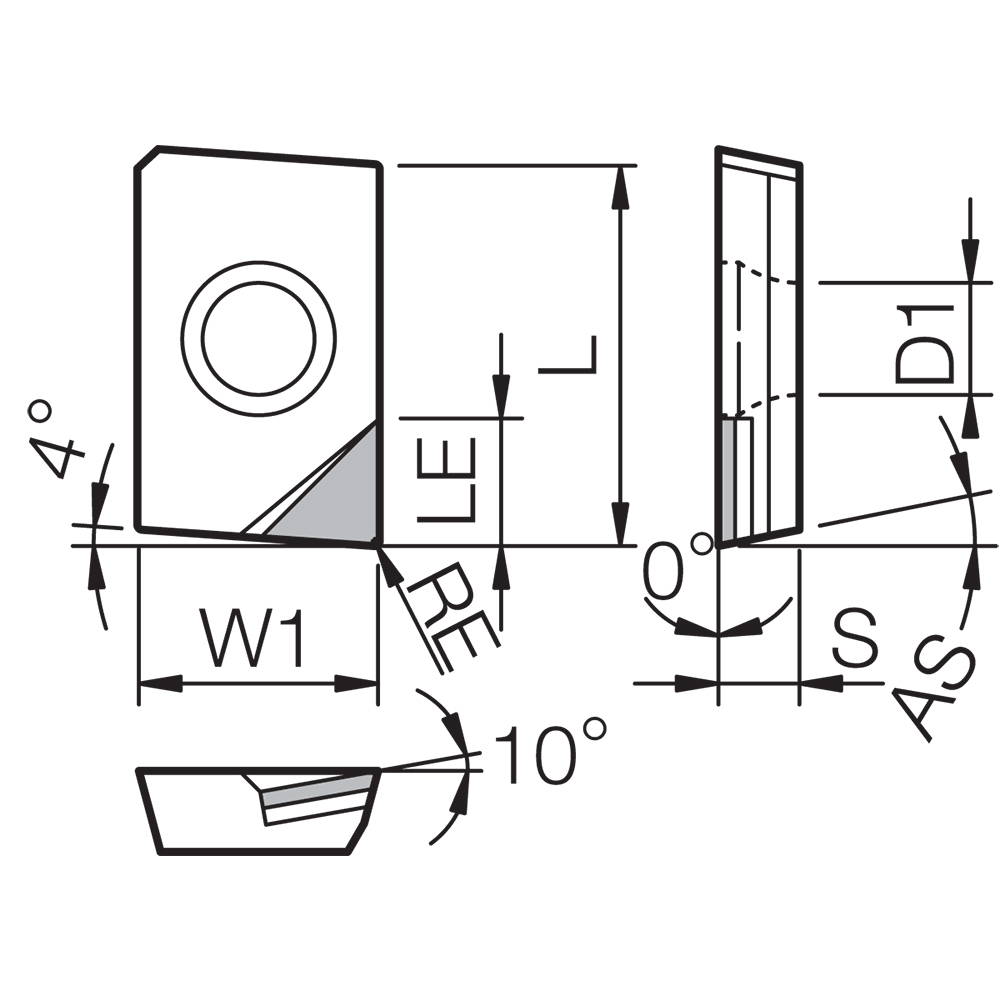

| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Insert Size | 3205 |
| Application | Facing | Shouldering | Slotting | Clearance Angle Major (AN) | 15 Degrees |
| Cutting Edge Length (L) | 0.2244″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.5906″ | Chip Breaker Type | FRX |
| Corner Radius (RE) | 0.0079″ | Series/List # | DMC, CEM |
| Inscribed Circle Diameter (IC) | 3/8″ | Hole Diameter | 0.1732″ |
| Insert Thickness (S) | 1/8″ | Cutting Edge Material | PCD |
| Grade | KPD010 | Tool Type | Finishing-Roughing |
| Shape | Parallelogram | Number of Cutting Edges | 1 |
| Insert Style | NDCW | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # NDCW3205FRXKPD010 | Country of Origin | Japan |
Shipping Info
Package Weight
.0313
