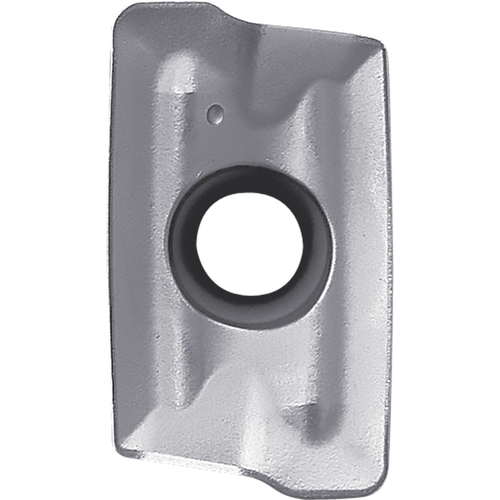

BDMT 170408ERJT TN100M
| Applicable Material | | Steel | | Insert Size | 170408 |
| Application | Facing | Shouldering | Slotting | Helical Milling | Clearance Angle Major (AN) | 18 Degrees |
| Insert Length (INSL) | 0.6693″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1/32″ | Chip Breaker Type | ER-JT |
| Insert Width (W1) | 0.3779″ | Series/List # | MEC-Series |
| Insert Thickness (S) | 0.1929″ | Hole Diameter | 0.1732″ |
| Insert Included Angle (EPSR) | 82 Degrees | Cutting Edge Material | Cermet |
| Coating | | TiCN | NbC | | Tool Type | Finishing-Medium |
| Grade | TN100M | Coating Process | Uncoated |
| Shape | Parallelogram | Number of Cutting Edges | 2 |
| Insert Style | BDMT | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # BDMT170408ERJTTN100M | Country of Origin | Japan |
Shipping Info
Package Weight
.1005
