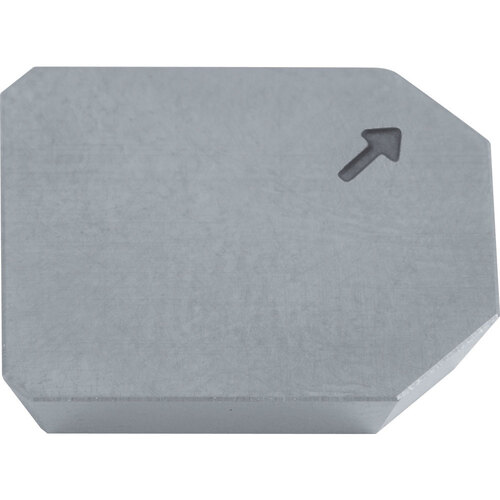

SEEN 42AFTRW TN100M INSRT
Milling Insert; SEEN 42AFTRW TN100M INSRT TN100M × 1/2″ Width × 1/8″ Thickness ; Cermet ; TiCN

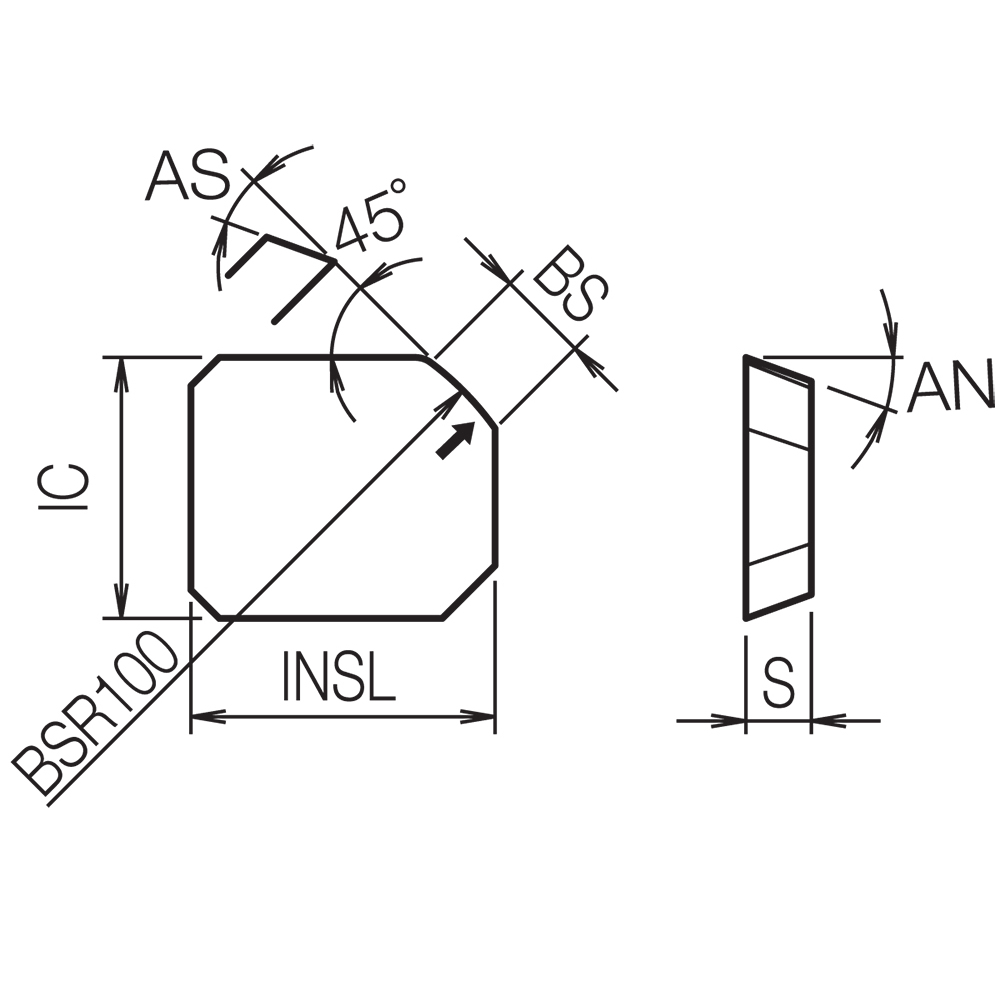

| Applicable Material | | Steel | | Insert Size | 42 |
| Application | Facing | Chamfering | Clearance Angle Major (AN) | 20 Degrees |
| Corner Radius (RE) | 3.937″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 1/2″ | Chip Breaker Type | AFTR-W |
| Inscribed Circle Diameter (IC) | 1/2″ | Series/List # | MSE-Series |
| Insert Thickness (S) | 1/8″ | Cutting Edge Material | Cermet |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Finishing-Medium |
| Coating | | TiCN | NbC | | Coating Process | Uncoated |
| Grade | TN100M | Number of Cutting Edges | 1 |
| Shape | Square | Measurement Type | Inch |
| Insert Style | SEEN |
Product Features
| Family Description | Alternate Manufacture # SEEN42AFTRWTN100M | Country of Origin | Japan |
Shipping Info
Package Weight
.0634
