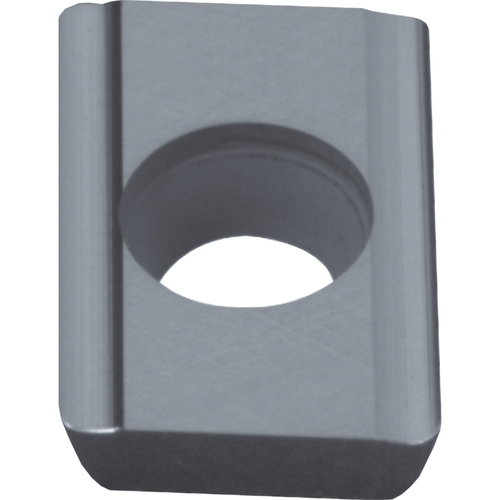

NDCT 322TRX TN100M INSERT
Milling Insert; NDCT 322TRX TN100M TN100M × 1/8″ Thickness ; Cermet ; TiCN

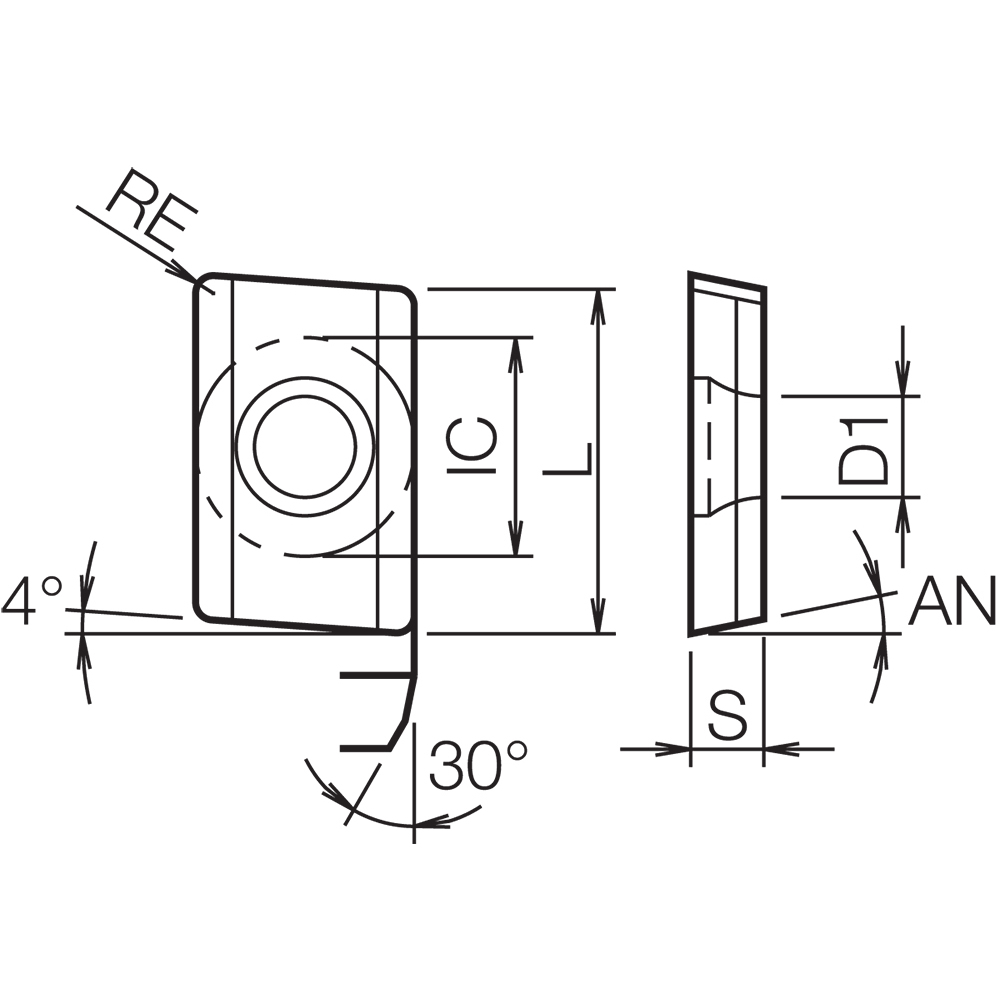

| Applicable Material | | Steel | | Clearance Angle Major (AN) | 15 Degrees |
| Application | Facing | Shouldering | Slotting | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.5906″ | Chip Breaker Type | TR-X |
| Corner Radius (RE) | 1/32″ | Series/List # | DMC, CEM |
| Inscribed Circle Diameter (IC) | 3/8″ | Hole Diameter | 0.1772″ |
| Insert Thickness (S) | 1/8″ | Cutting Edge Material | Cermet |
| Coating | | TiCN | NbC | | Tool Type | Finishing-Medium |
| Grade | TN100M | Coating Process | Uncoated |
| Shape | Parallelogram | Number of Cutting Edges | 2 |
| Insert Style | NDCT | Measurement Type | Inch |
| Insert Size | 322 |
Product Features
| Family Description | Alternate Manufacture # NDCT322TRXTN100M | Country of Origin | Japan |
Shipping Info
Package Weight
.0765
