SPCN 42EDTR TN100M INSERT

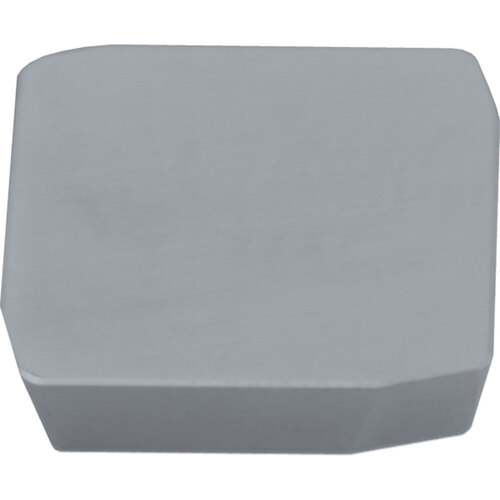

Milling Insert; SPCN 42EDTR TN100M TN100M × 1/2″ Width × 1/8″ Thickness ; Cermet ; TiCN

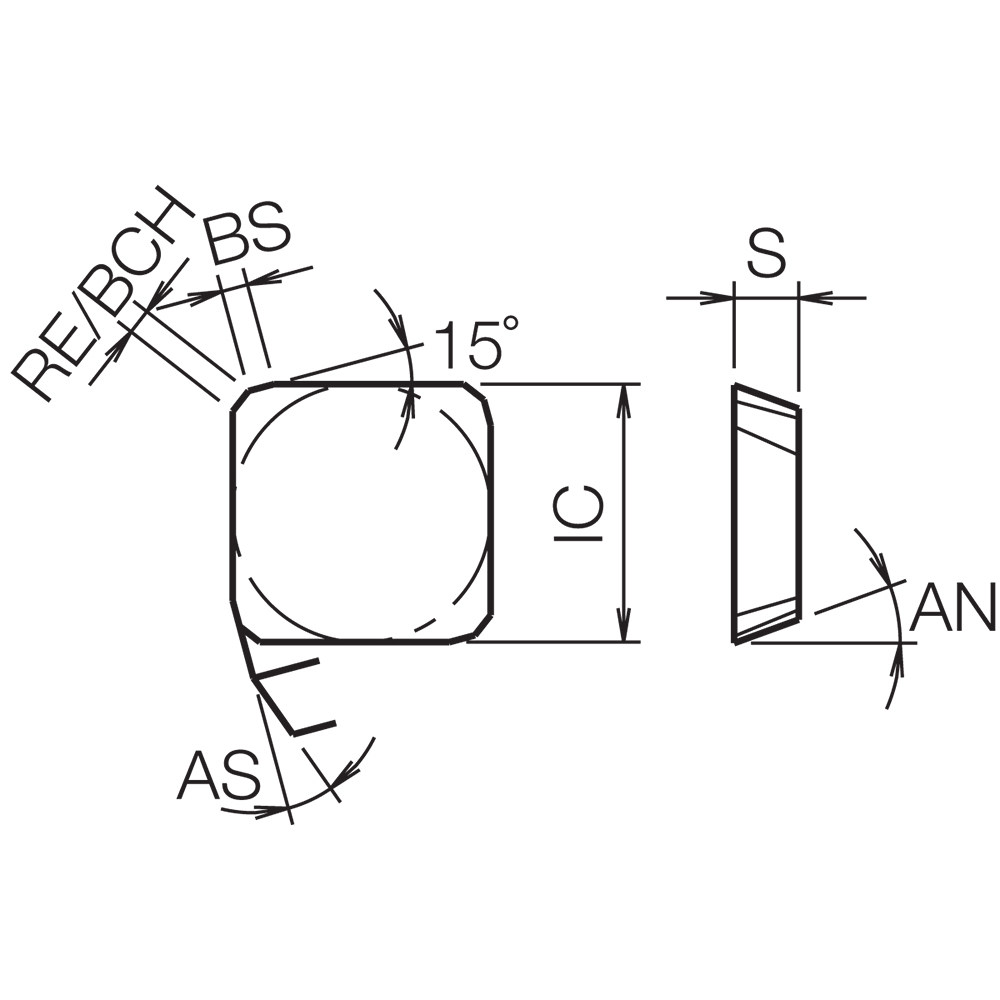

| Applicable Material | | Steel | | Insert Size | 42 |
| Application | Facing | Chamfering | Clearance Angle Major (AN) | 11 Degrees |
| Insert Width (W1) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | EDTR |
| Insert Thickness (S) | 1/8″ | Series/List # | MSP-Series |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Cermet |
| Coating | | TiCN | NbC | | Tool Type | Finishing-Medium |
| Grade | TN100M | Coating Process | Uncoated |
| Shape | Square | Number of Cutting Edges | 2 |
| Insert Style | SPCN | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # SPCN42EDTRTN100M | Country of Origin | Japan |
Shipping Info
Package Weight
.0919
