SOMT 100420ERGM CA6535
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Insert Size | 100420 |
| Application | High Feed | Facing | Shouldering | Slotting | Pocketing | Ramping | Helical Milling | Plunging | Clearance Angle Major (AN) | 16 Degrees |
| Corner Radius (RE) | 5/64″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.4055″ | Chip Breaker Type | ER-GM |

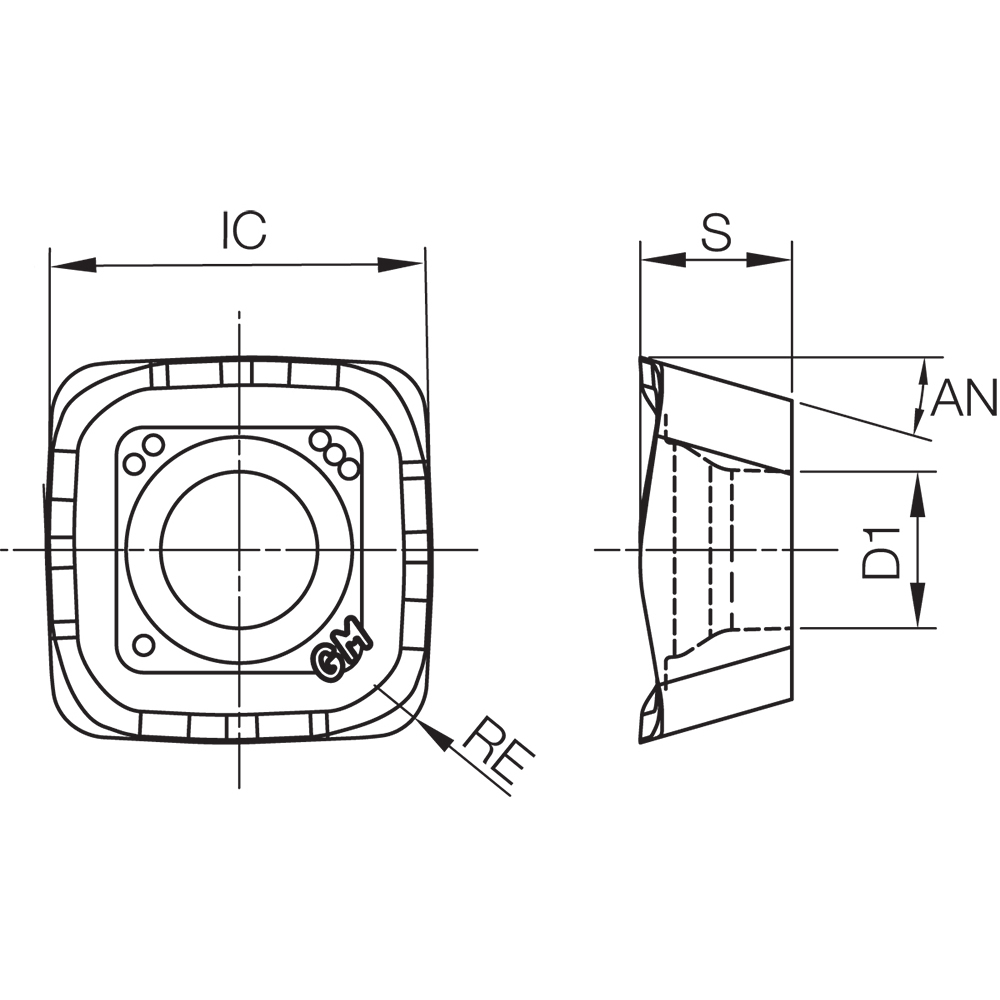

| Inscribed Circle Diameter (IC) | 0.4055″ | Series/List # | MFH-Raptor |
| Insert Thickness (S) | 0.1803″ | Hole Diameter | 0.1811″ |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | | Al2O3 | TiN | TiCN | | Tool Type | Medium-Roughing |
| Grade | CA6535 | Coating Process | CVD |
| Shape | Square | Number of Cutting Edges | 4 |
| Insert Style | SOMT | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # SOMT100420ERGMCA6535 | Country of Origin | Japan |
Shipping Info
Package Weight
0.079
