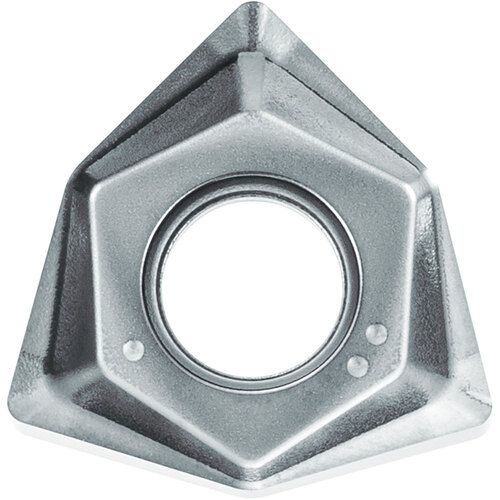

WNGT 080608FNAM GW25 INST
Milling Insert; WNGT 080608FNAM GW25 INST GW25 × 0.2618″ Thickness ; Carbide ; WC/Co
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Insert Size | 80608 |
| Application | Facing | Shouldering | Slotting | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 1/32″ | Chip Breaker Type | FN-AM |
| Inscribed Circle Diameter (IC) | 0.552″ | Series/List # | M-SIX (MFWN) |
| Insert Thickness (S) | 0.2618″ | Hole Diameter | 0.2441″ |
| Insert Included Angle (EPSR) | 80 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Finishing-Medium |
| Grade | GW25 | Coating Process | Uncoated |
| Shape | Trigon | Number of Cutting Edges | 3 |
| Insert Style | WNGT | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # WNGT080608FNAMGW25 | Country of Origin | Japan |
Shipping Info
Package Weight
0.267
