LOGU 030310ERGM CA6535
Milling Insert; LOGU 030310ERGM CA6535 CA6535 × 0.2441″ Width × 0.1559″ Thickness ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Insert Size | 30310 |
| Application | High Feed | Facing | Shouldering | Slotting | Pocketing | Ramping | Helical Milling | Plunging | Cutting Direction (HAND) | Right Hand |

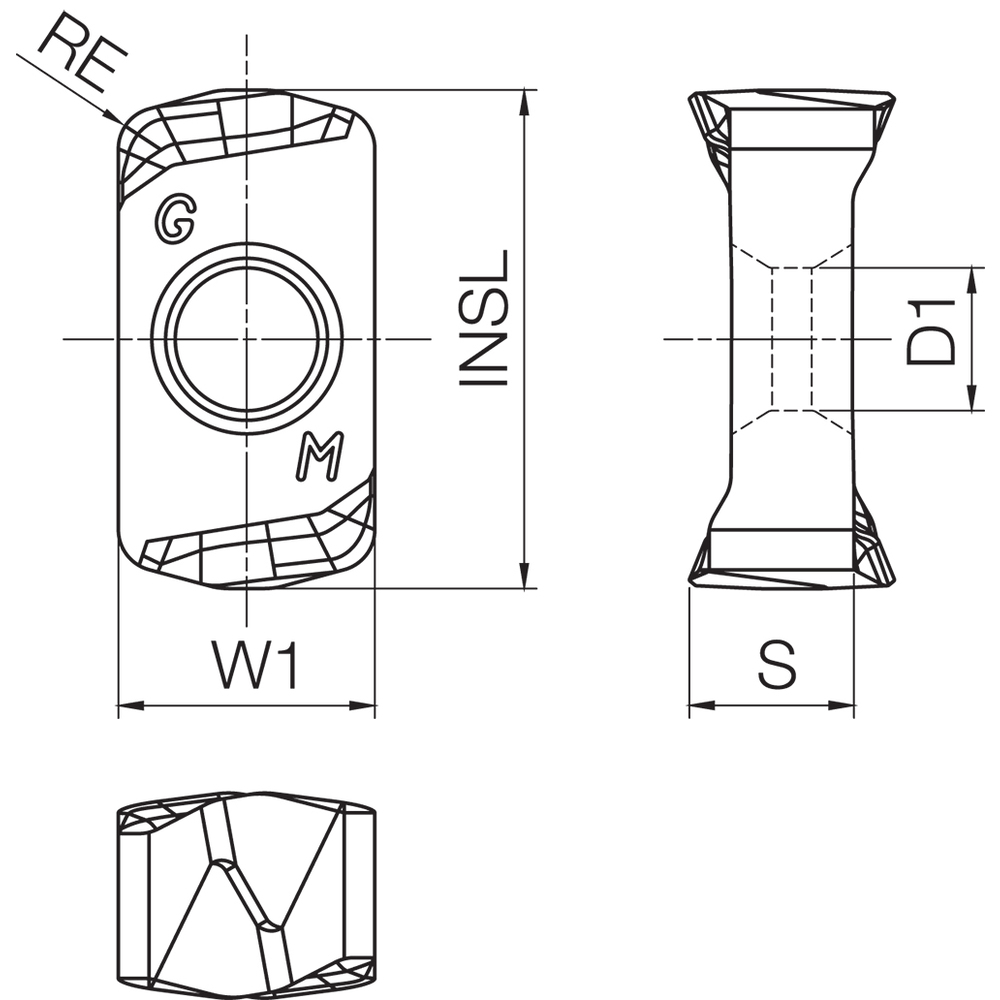

| Insert Length (INSL) | 0.4685″ | Chip Breaker Type | ER-GM |
| Corner Radius (RE) | 0.0394″ | Series/List # | MFH-Mini |
| Insert Width (W1) | 0.2441″ | Hole Diameter | 0.1358″ |
| Insert Thickness (S) | 0.1559″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Medium-Roughing |
| Coating | | Al2O3 | TiN | TiCN | | Coating Process | CVD |
| Grade | CA6535 | Number of Cutting Edges | 4 |
| Shape | Rectangle | Measurement Type | Inch |
| Insert Style | LOGU |
Product Features
| Family Description | Alternate Manufacture # LOGU030310ERGMCA6535 | Country of Origin | Japan |
Shipping Info
Package Weight
0.102
