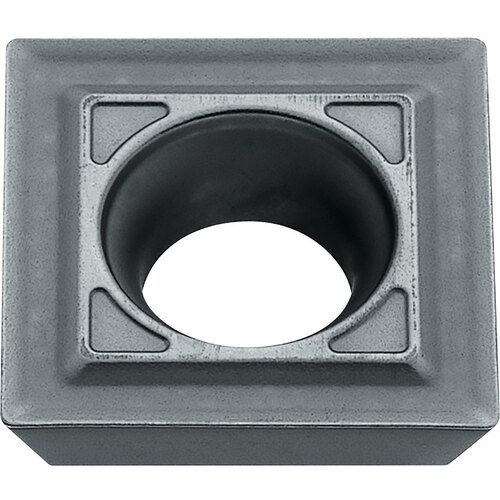

SEMT 421C KW10 INSERT
Milling Insert; SEMT 421C KW10 KW10 × 1/2″ Width × 1/8″ Thickness ; Carbide ; WC/Co
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Insert Size | 421 |

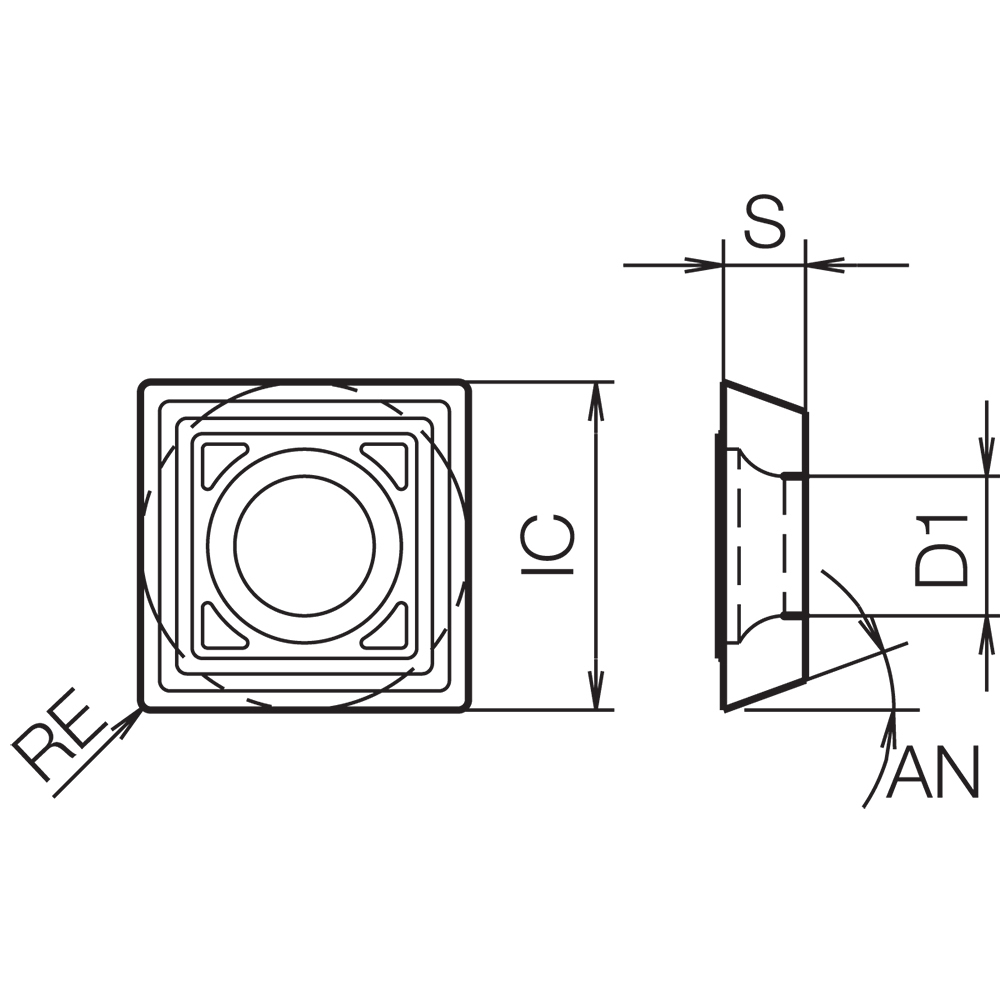

| Application | Chamfering | Countersinking | Back Chamfering | V-Shape Slotting | Clearance Angle Major (AN) | 20 Degrees |
| Corner Radius (RE) | 1/64″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 1/2″ | Chip Breaker Type | C |
| Inscribed Circle Diameter (IC) | 1/2″ | Series/List # | MCSE-Series |
| Insert Thickness (S) | 1/8″ | Hole Diameter | 0.2165″ |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Finishing-Medium |
| Grade | KW10 | Coating Process | Uncoated |
| Shape | Square | Number of Cutting Edges | 4 |
| Insert Style | SEMT | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # SEMT421CKW10 | Country of Origin | Japan |
Shipping Info
Package Weight
0.176
