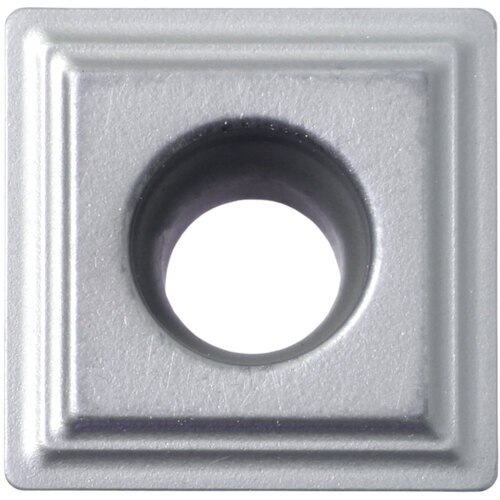

SPMT 090308EZ KW10 INSERT

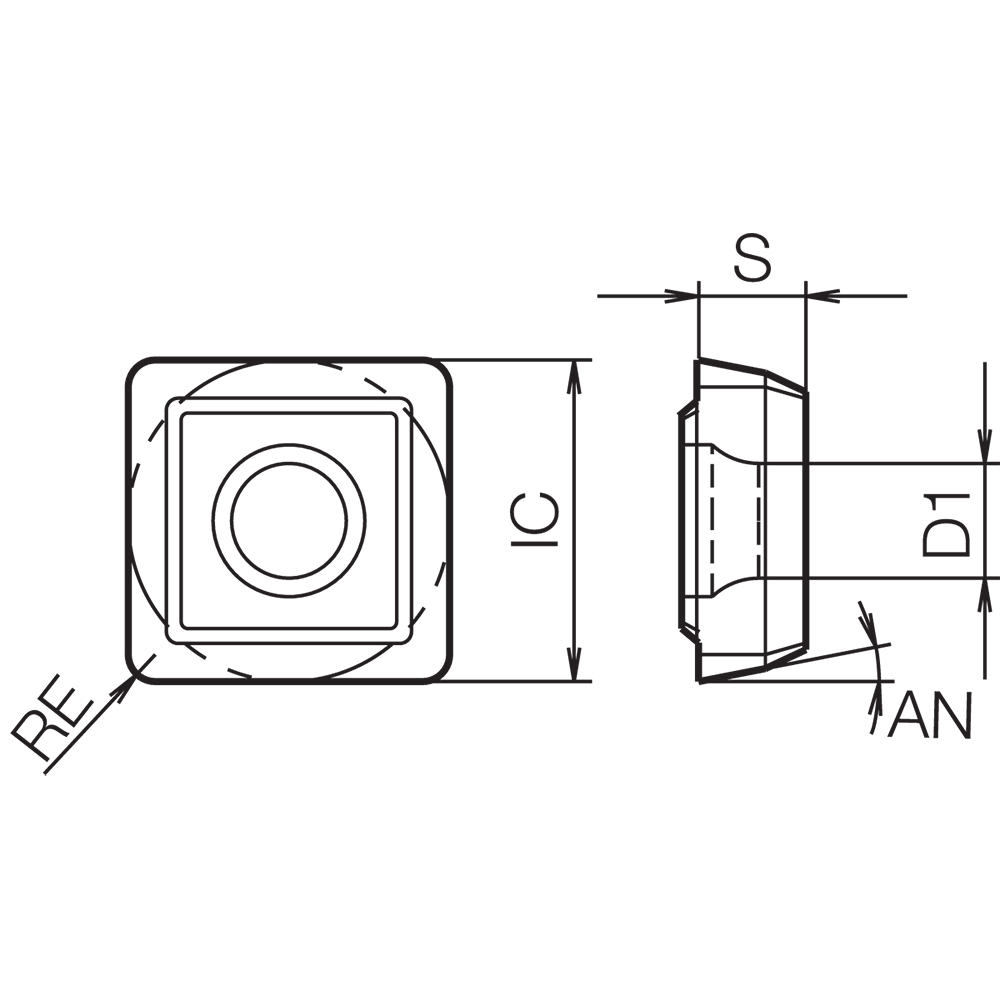

| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Insert Size | 90308 |
| Application | Bolt Counterboring | Facing | Shouldering | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/32″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 3/8″ | Chip Breaker Type | E-Z |
| Inscribed Circle Diameter (IC) | 3/8″ | Series/List # | MEF-Series |
| Insert Thickness (S) | 1/8″ | Hole Diameter | 0.1339″ |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Finishing-Medium |
| Grade | KW10 | Coating Process | Uncoated |
| Shape | Square | Number of Cutting Edges | 4 |
| Insert Style | SPMT | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # SPMT090308EZKW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.1279
