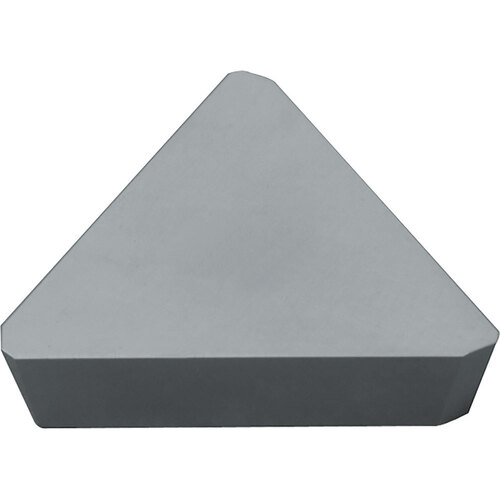

TPK 43PDFR KW10 INSERT
Milling Insert; TPK 43PDFR KW10 KW10 × 3/16″ Thickness ; Carbide ; WC/Co

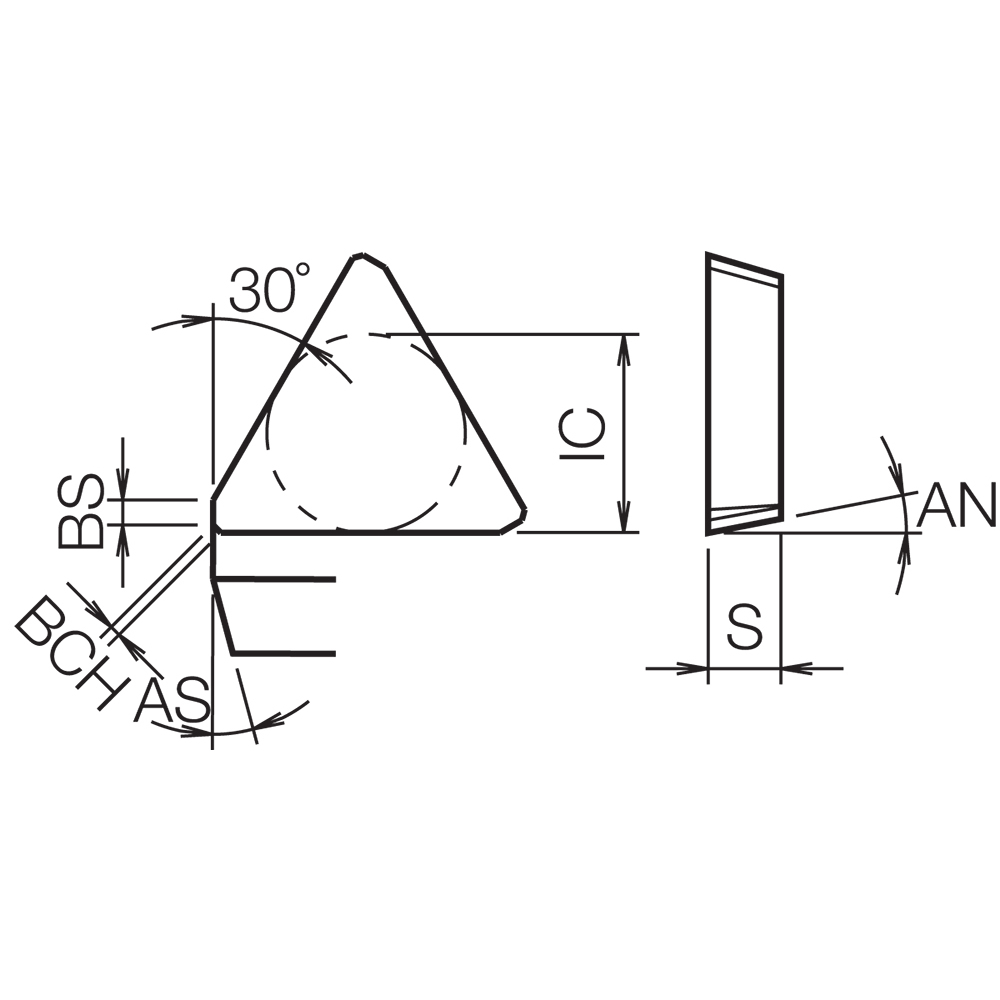

| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Clearance Angle Major (AN) | 11 Degrees |
| Application | Facing | Shouldering | Slotting | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | PDFR |
| Insert Thickness (S) | 3/16″ | Series/List # | MTP-Series |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Finishing-Medium |
| Grade | KW10 | Coating Process | Uncoated |
| Shape | Triangle | Number of Cutting Edges | 3 |
| Insert Style | TPK | Measurement Type | Inch |
| Insert Size | 43 |
Product Features
| Family Description | Alternate Manufacture # TPK43PDFRKW10 | Country of Origin | China |
Shipping Info
Package Weight
.3219
