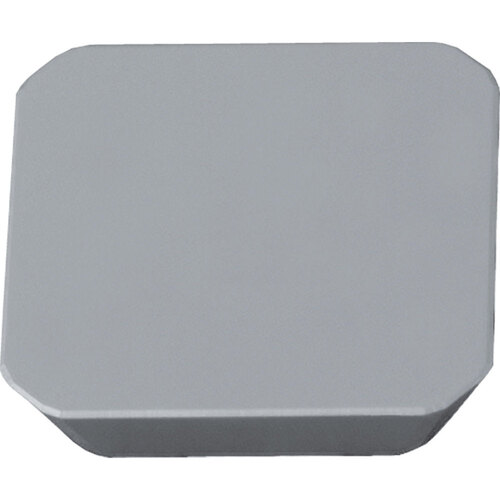

SEKN 42AFFN KW10 INSERT
Milling Insert; SEKN 42AFFN KW10 KW10 × 1/2″ Width × 1/8″ Thickness ; Carbide ; WC/Co

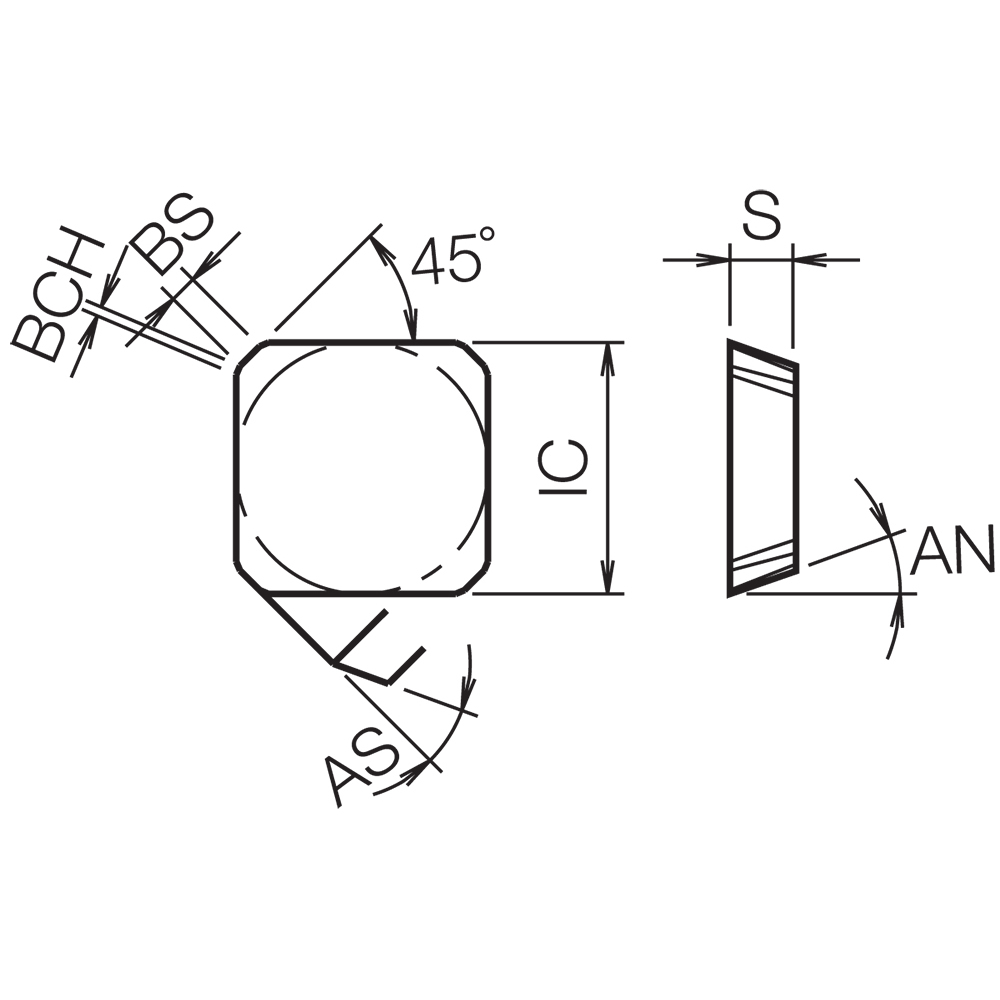

| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Insert Size | 42 |
| Application | Facing | Chamfering | Clearance Angle Major (AN) | 20 Degrees |
| Insert Width (W1) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | AFFN |
| Insert Thickness (S) | 1/8″ | Series/List # | MSE-Series |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Finishing-Medium |
| Grade | KW10 | Coating Process | Uncoated |
| Shape | Square | Number of Cutting Edges | 4 |
| Insert Style | SEKN | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # SEKN42AFFNKW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.1653
