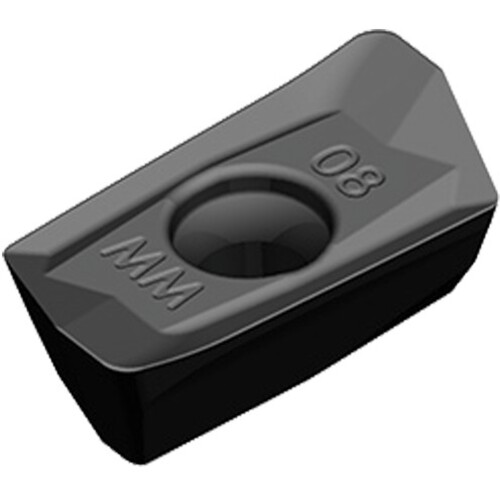

XDPT1701SRMM VSM17 R=0.4 MMMILLING
Milling Insert; 0.754″ Length × 0.378″ Width × 0.193″ Thickness ; WP40PM ; Carbide ; AlCrN
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Shape | Parallelogram |
| Cutting Edge Length (L) | 0.754″ | Insert Style | XDPT |
| Corner Radius (RE) | 0.016″ | Insert Size | 1701 |
| Depth of Cut Maximum (APMX) | 0.658″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.378″ | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 0.173″ | Hole Diameter | 0.173″ |
| Insert Thickness (S) | 0.193″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 15 Degrees | Tool Type | Single sided Inserts |
| Coating | AlCrN | Number of Cutting Edges | 2 |
| Grade | WP40PM |
Product Features
| Remarks | XDPT | Country of Origin | Germany |
