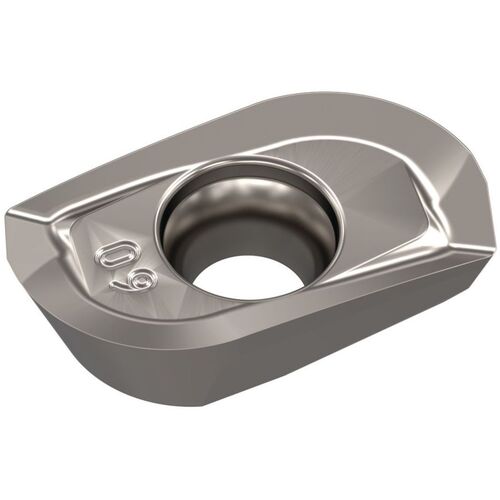

XDCT1704RALP VSM17 R=1.6 ALPMILLING
Milling Insert; 0.755″ Length × 0.378″ Width × 0.193″ Thickness ; WN25PM ; Carbide ; TiB2
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | Parallelogram |
| Cutting Edge Length (L) | 0.755″ | Insert Style | XDCT |
| Corner Radius (RE) | 1/16″ | Insert Size | 1704 |
| Depth of Cut Maximum (APMX) | 0.658″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.378″ | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 0.173″ | Hole Diameter | 0.173″ |
| Insert Thickness (S) | 0.193″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 15 Degrees | Tool Type | Single sided Inserts |
| Coating | TiB2 | Number of Cutting Edges | 2 |
| Grade | WN25PM |
Product Features
| Remarks | XDCT | Country of Origin | Germany |
