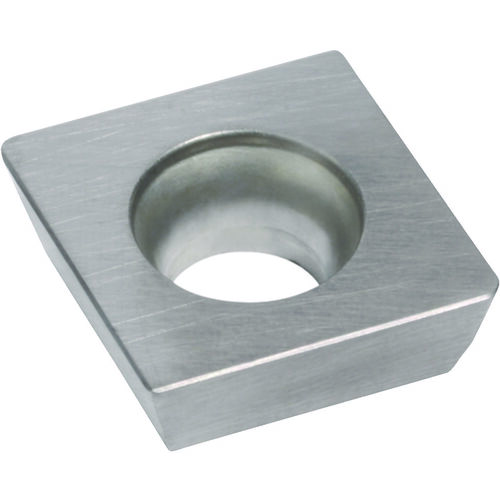

MDHW120408 WU35PM M900 INSERT
Milling Insert; 0.501″ Length × 3/16″ Thickness ; WU35PM ; Carbide ; TiN
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Parallelogram |
| Cutting Edge Length (L) | 0.501″ | Insert Style | MDHW |
| Corner Radius (RE) | 1/32″ | Insert Size | 120408 |
| Depth of Cut Maximum (APMX) | 0.5012″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 1/2″ | Chip Breaker Type | W |
| Inscribed Circle Diameter (IC) | 1/2″ | Hole Diameter | 0.216″ |
| Insert Thickness (S) | 3/16″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 15 Degrees | Tool Type | Single sided Inserts |
| Coating | TiN | Number of Cutting Edges | 2 |
| Grade | WU35PM |
Product Features
| Remarks | MDHW | Country of Origin | Germany |
