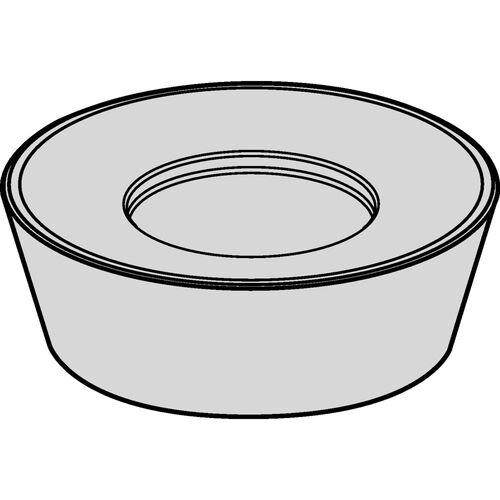

RDPX12T3M0SNMM TN6525 INSERT
Milling Insert; RDPX12T3M0SNMM TN6525 TN6525 × 5/32″ Thickness ; Carbide ; ALOX-SN
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | | Shape | Round |
| Cutting Edge Length (L) | 0.472″ | Insert Style | RDPX |
| Corner Radius (RE) | 0.2362″ | Insert Size | 12T3 |
| Depth of Cut Maximum (APMX) | 0.236″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 0.472″ | Chip Breaker Type | MM |
| Inscribed Circle Diameter (IC) | 0.472″ | Hole Diameter | 0.154″ |
| Insert Thickness (S) | 0.156″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 15 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 1 |
| Grade | TN6525 |
Product Features
| Remarks | RDPX | Country of Origin | Germany |
Shipping Info
Package Weight
0
