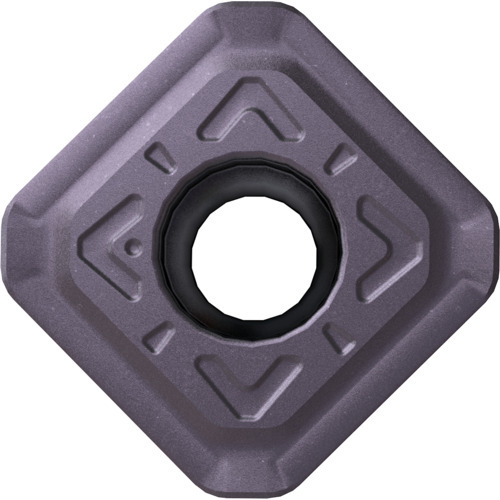

SEMT13T3AGSN YG602
Milling Insert; SEMT13T3AGSN YG602 YG602 × 0.157″ Thickness ; Carbide ; PVD
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Style | SEMT |
| Corner Radius (RE) | 0.059″ | Clearance Angle Major (AN) | 20 Degrees |
| Depth of Cut Maximum (APMX) | 6″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.528″ | Series/List # | SEMT |
| Insert Thickness (S) | 0.157″ | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 0.052″ | Tool Type | Milling Insert |
| Insert Included Angle (EPSR) | 45 Degrees | Coating Process | PVD |
| Coating | TiAlN | Number of Cutting Edges | 4 |
| Grade | YG602 | Measurement Type | Inch |
| Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.000
Package Width
1.750
Package Height
0.625
Package Weight
0.017
