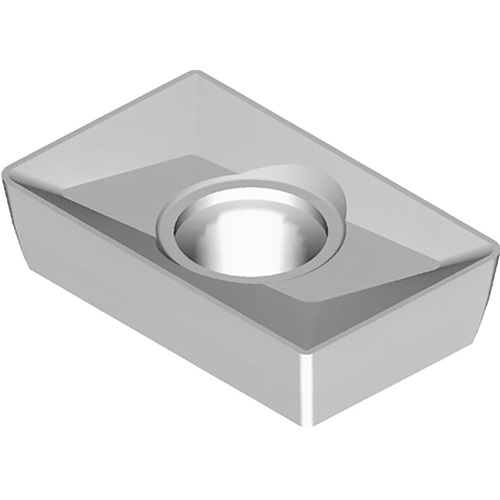

XPMT15T308 TN100M
Milling Insert; XPMT15T308 TN100M TN100M × 5/32″ Thickness ; Cermet ; TiCN
| Applicable Material | | Steel | | Insert Size | 15T308 |
| Application | Facing | Shouldering | Slotting | Chamfering | Countersinking | Clearance Angle Major (AN) | 15 Degrees |
| Insert Length (INSL) | 0.6071″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 1/32″ | Series/List # | EM, FM, CM |
| Inscribed Circle Diameter (IC) | 3/8″ | Hole Diameter | 0.1575″ |
| Insert Thickness (S) | 5/32″ | Cutting Edge Material | Cermet |
| Coating | | TiCN | NbC | | Tool Type | Finishing-Medium |
| Grade | TN100M | Coating Process | Uncoated |
| Shape | Parallelogram | Number of Cutting Edges | 2 |
| Insert Style | XPMT | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # XPMT15T308TN100M | Country of Origin | Japan |
Shipping Info
Package Weight
0.01
