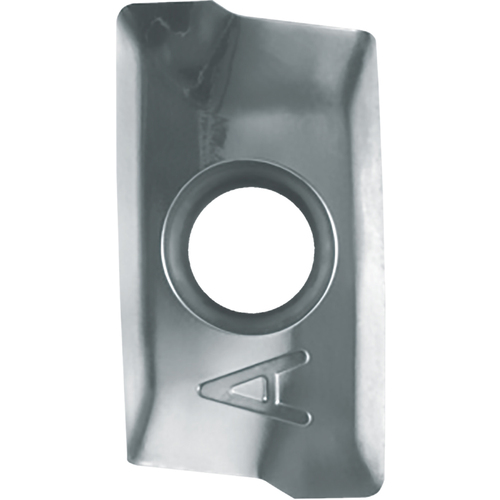

* BDGT11T308 FRJA GW25 POLISHED INS
Milling Insert; MEC-Series GW25 × 0.2638″ Width × 0.1496″ Thickness ; Carbide ; WC/Co

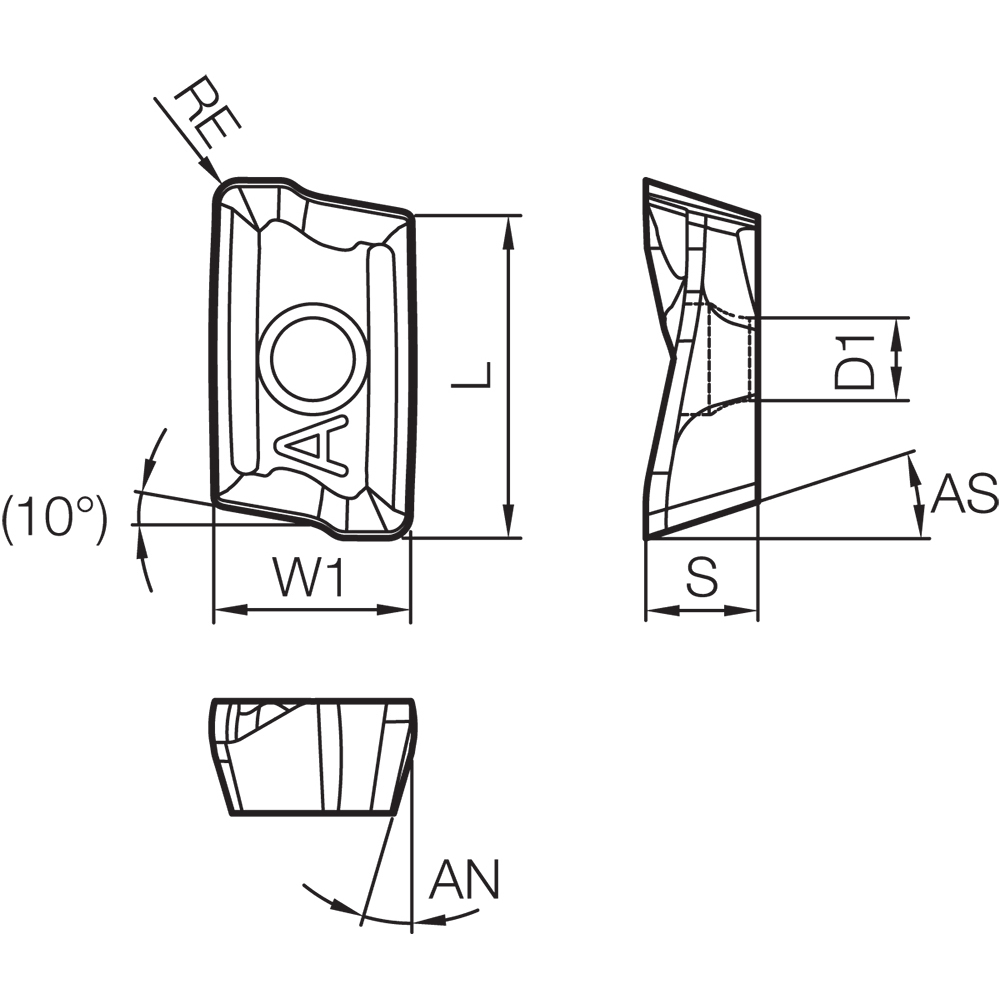

| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | Insert Size | 11T308 |
| Application | Facing | Shouldering | Slotting | Helical Milling | Clearance Angle Major (AN) | 18 Degrees |
| Insert Length (INSL) | 0.4331″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1/32″ | Chip Breaker Type | FR-JA |
| Insert Width (W1) | 0.2638″ | Series/List # | MEC-Series |
| Insert Thickness (S) | 0.1496″ | Hole Diameter | 0.1102″ |
| Insert Included Angle (EPSR) | 82 Degrees | Cutting Edge Material | Carbide |
| Coating | WC/Co | Tool Type | Finishing-Medium |
| Grade | GW25 | Coating Process | Uncoated |
| Shape | Parallelogram | Number of Cutting Edges | 2 |
| Insert Style | BDGT | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # BDGT11T308FRJAGW25 | Country of Origin | Japan |
Shipping Info
Package Weight
0.2
