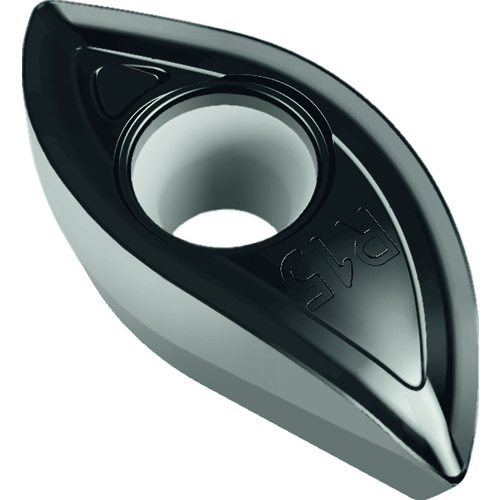

XDMT2506160R-F55 WSM35
Milling Insert; 0.5669″ Length × 0.5681″ Width × 15/64″ Thickness ; WSM35 ; Carbide ; | TiAlN | Al2O3 |
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Shape | Ball Nose |
| Cutting Edge Length (L) | 0.5669″ | Insert Style | XDMT |
| Corner Radius (RE) | 0.6299″ | Insert Size | 2506160 |
| Depth of Cut Maximum (APMX) | 0.567″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.5681″ | Chip Breaker Type | F55 |
| Inscribed Circle Diameter (IC) | 0.567″ | Series/List # | XDMT-WSM35 |
| Insert Thickness (S) | 15/64″ | Hole Diameter | 0.2165″ |
| Insert Included Angle (EPSR) | 15 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiAlN | Al2O3 | | Tool Type | Single sided Inserts |
| Grade | WSM35 | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.518
