ONMU090520ANTNME12 MM4500

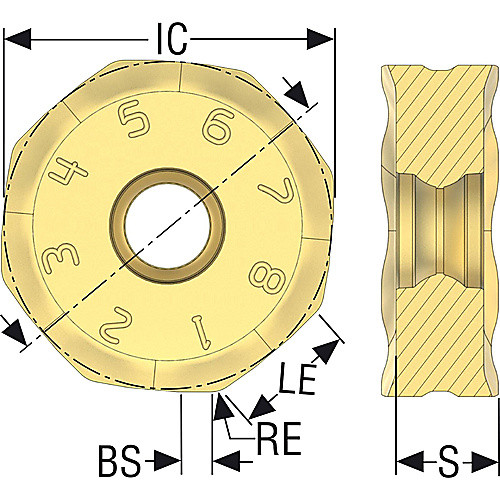

Milling Insert; 0.8661″ Length × 0.866″ Width × 0.228″ Thickness ; MM4500 ; Carbide ; | Al2O3 | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | | Grade | MM4500 |
| Cutting Edge Length (L) | 0.8661″ | Shape | Octagon |
| Corner Radius (RE) | 0.0787″ | Insert Style | ONMU |
| Depth of Cut Maximum (APMX) | 0.2874″ | Insert Size | 90520 |
| Insert Width (W1) | 0.866″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.8661″ | Chip Breaker Type | ME12 |
| Insert Thickness (S) | 0.228″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 135 Degrees | Tool Type | Double sided Inserts |
| Coating | | Al2O3 | TiCN | | Number of Cutting Edges | 16 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.071
