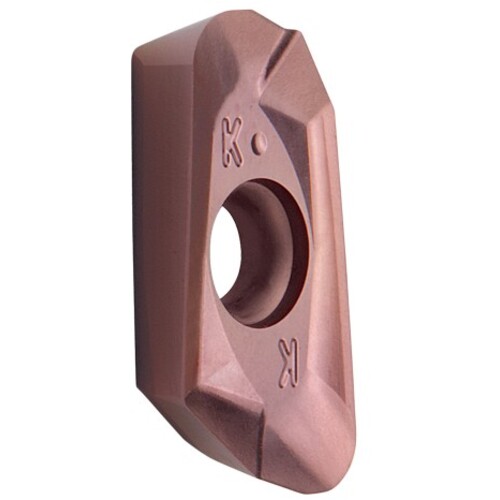

ZDGT150408R-K85 WXN15
Milling Insert; 0.4134″ Length × 3/64″ Width × 3/16″ Thickness ; WXN15 ; Carbide ; TiCN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | Parallelogram |
| Cutting Edge Length (L) | 0.4134″ | Insert Style | ZDGT |
| Corner Radius (RE) | 1/32″ | Insert Size | 150408 |
| Depth of Cut Maximum (APMX) | 0.638″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 3/64″ | Chip Breaker Type | K85 |
| Inscribed Circle Diameter (IC) | 0.413″ | Series/List # | ZDGT-WXN15 |
| Insert Thickness (S) | 3/16″ | Hole Diameter | 0.1732″ |
| Insert Included Angle (EPSR) | 15 Degrees | Cutting Edge Material | Carbide |
| Coating | TiCN | Tool Type | Single sided Inserts |
| Grade | WXN15 | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.231
