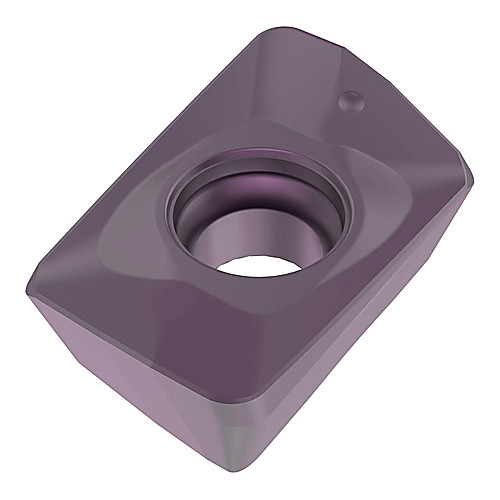

XOMX10T308TR-M09 MK2050
Milling Insert; 11.07 mm Length × 6.86 mm Width × 3.83 mm Thickness ; MK2050 ; Carbide ; | TiAlN | TiSiN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | MK2050 |
| Cutting Edge Length (L) | 11.07 mm | Shape | Parallelogram |
| Corner Radius (RE) | 0.8 mm | Insert Style | XOMX |
| Depth of Cut Maximum (APMX) | 0.3661″ | Insert Size | 10T308 |
| Insert Width (W1) | 6.86 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.2717″ | Chip Breaker Type | M09 |
| Insert Thickness (S) | 3.83 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 15 Degrees | Tool Type | Single sided Inserts |
| Coating | | TiAlN | TiSiN | | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
