APET1604PDFR KW10

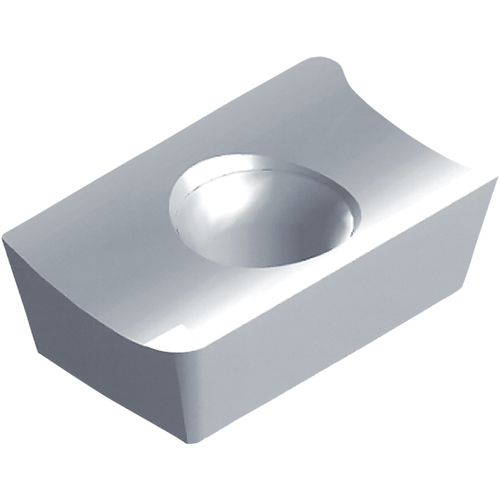

Milling Insert; APET1604PDFR KW10 KW10 × 3/8″ Width × 0.188″ Thickness ; Carbide ; WC/Co
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Insert Size | 1604 |
| Application | Facing | Shouldering | Slotting | Chamfering | Countersinking | Clearance Angle Major (AN) | 11 Degrees |

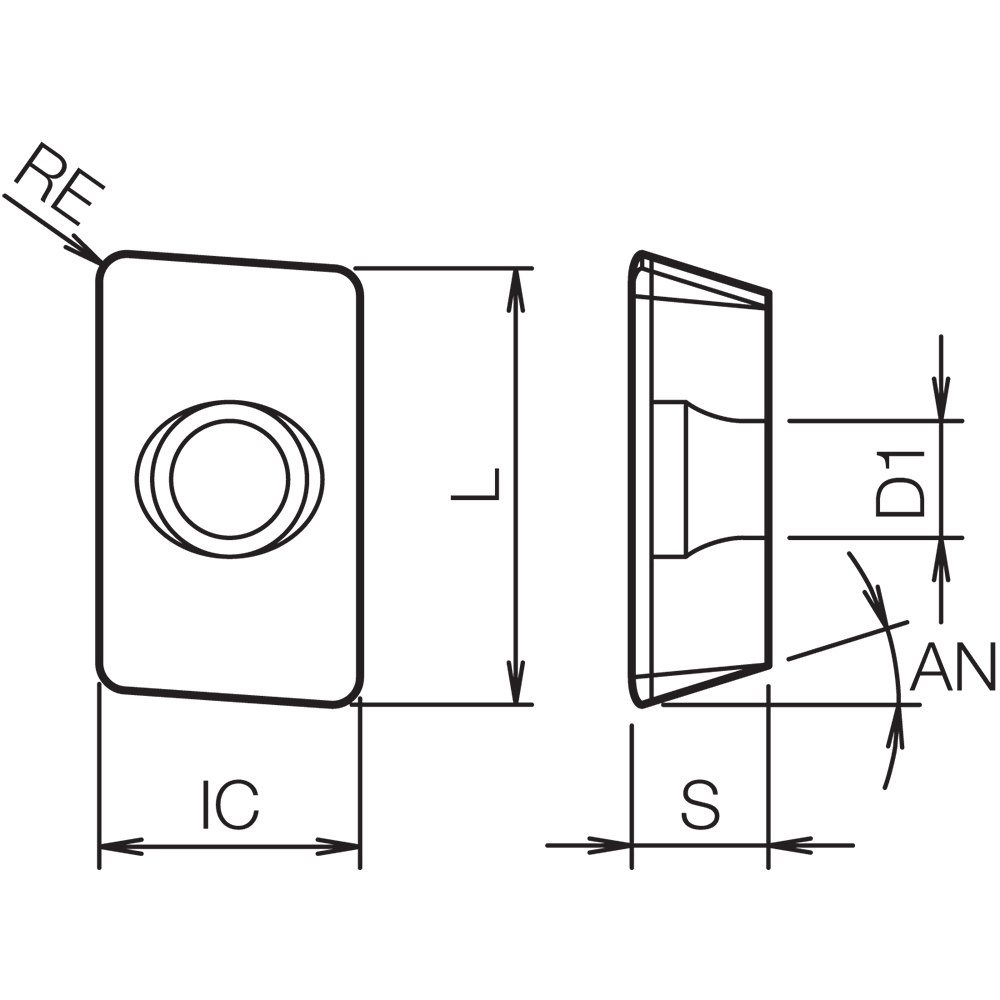

| Insert Length (INSL) | 0.6299″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0394″ | Chip Breaker Type | PDFR |
| Insert Width (W1) | 3/8″ | Series/List # | EM-AL, FM-AL, CM-AL |
| Inscribed Circle Diameter (IC) | 3/8″ | Hole Diameter | 0.1575″ |
| Insert Thickness (S) | 0.188″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 85 Degrees | Tool Type | Finishing-Medium |
| Coating | Uncoated | Coating Process | Uncoated |
| Grade | KW10 | Number of Cutting Edges | 2 |
| Shape | Parallelogram | Measurement Type | Inch |
| Insert Style | APET |
Product Features
| Family Description | Alternate Manufacture # APET1604PDFRKW10 | Country of Origin | Japan |
Shipping Info
Package Weight
0.1
