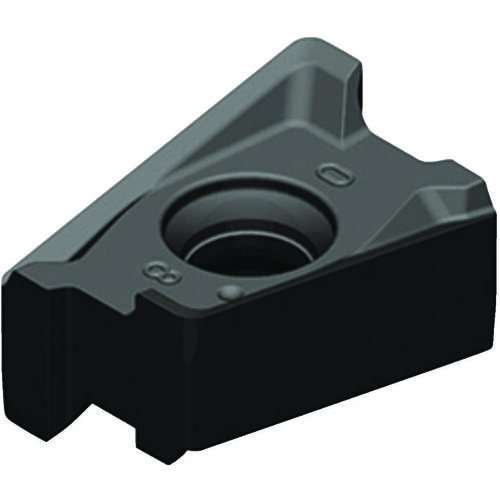

XNGU1502SRMH VSM490-15 INSERT
Milling Insert; 0.638″ Length × 0.394″ Width × 0.271″ Thickness ; WK15CM ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Cast Iron | | Shape | Rectangle |
| Cutting Edge Length (L) | 0.638″ | Insert Style | XNGU |
| Corner Radius (RE) | 0.031″ | Insert Size | 1502 |
| Depth of Cut Maximum (APMX) | 0.602″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.394″ | Chip Breaker Type | U |
| Inscribed Circle Diameter (IC) | 0.183″ | Hole Diameter | 0.183″ |
| Insert Thickness (S) | 0.271″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Double sided Inserts |
| Coating | | Al2O3 | TiN | TiCN | | Number of Cutting Edges | 4 |
| Grade | WK15CM |
Product Features
| Remarks | XNGU | Country of Origin | Germany |
Shipping Info
Package Weight
0.02
