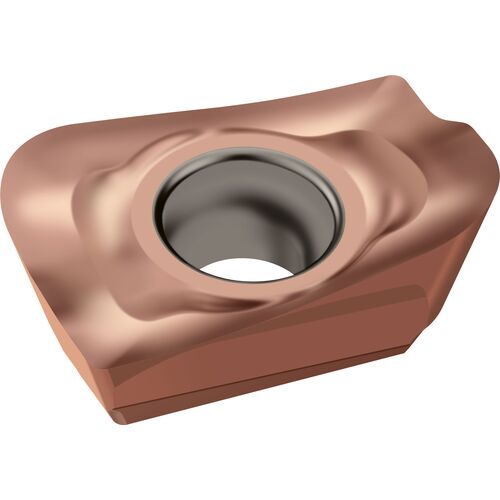

ADHT120430L-G88 Grade WXN15
Milling Insert; 13.6 mm Length × 8.4 mm Width × 4.76 mm Thickness ; WXN15 ; Carbide ; TiCN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 13.6 mm | Insert Style | ADHT |
| Corner Radius (RE) | 3 mm | Insert Size | 120430 |
| Depth of Cut Maximum (APMX) | 0.535″ | Cutting Direction (HAND) | Left Hand |
| Insert Width (W1) | 8.4 mm | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 8.4 mm | Series/List # | ADHT-WXN15 |
| Insert Thickness (S) | 4.76 mm | Hole Diameter | 3.4 mm |
| Insert Included Angle (EPSR) | 85 Degrees | Cutting Edge Material | Carbide |
| Coating | TiCN | Tool Type | Single sided Inserts |
| Grade | WXN15 | Number of Cutting Edges | 2 |
Product Features
| Family Description | ADHT120430L-G88 WXN15 | Country of Origin | Germany |
Shipping Info
Package Weight
0.104
