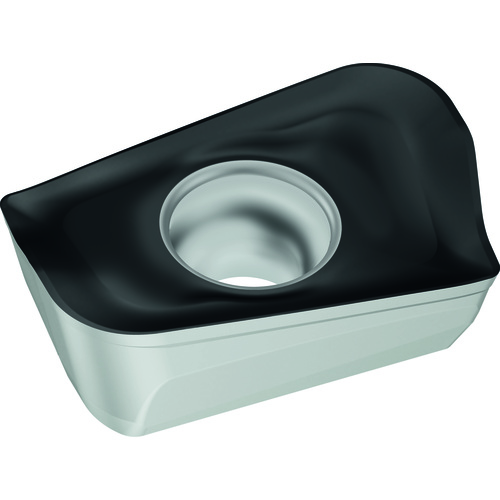

ADMT080316R-F56 Grade WKP35S
Milling Insert; 9.52 mm Length × 6.75 mm Width × 3.35 mm Thickness ; WKP35S ; Carbide ; | TiCN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 9.52 mm | Insert Style | ADMT |
| Corner Radius (RE) | 1.6 mm | Insert Size | 80316 |
| Depth of Cut Maximum (APMX) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 6.75 mm | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 6.75 mm | Series/List # | ADMT-WKP35S |
| Insert Thickness (S) | 3.35 mm | Hole Diameter | 2.8 mm |
| Insert Included Angle (EPSR) | 85 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | Al2O3 | | Tool Type | Single sided Inserts |
| Grade | WKP35S | Number of Cutting Edges | 2 |
Product Features
| Family Description | ADMT080316R-F56 WKP35S | Country of Origin | Germany |
Shipping Info
Package Weight
0.122
