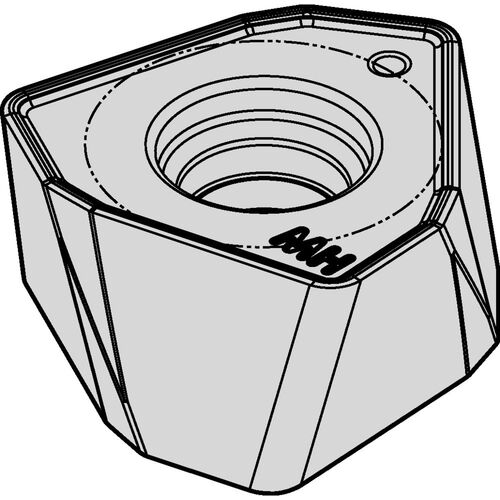

WOEJ120712SRMH WP35CM M370 INSERT
Milling Insert; 0.579″ Length × 0.287″ Thickness ; WP35CM ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | | Shape | 101.5° Trigon |
| Cutting Edge Length (L) | 0.579″ | Insert Style | WOEJ |
| Corner Radius (RE) | 0.05″ | Insert Size | 120712 |
| Depth of Cut Maximum (APMX) | 0.579″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.579″ | Chip Breaker Type | MH |
| Inscribed Circle Diameter (IC) | 0.472″ | Hole Diameter | 0.189″ |
| Insert Thickness (S) | 0.287″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 101.5 Degrees | Tool Type | Double sided Inserts |
| Coating | | Al2O3 | TiN | TiCN | | Number of Cutting Edges | 6 |
| Grade | WP35CM |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0393
