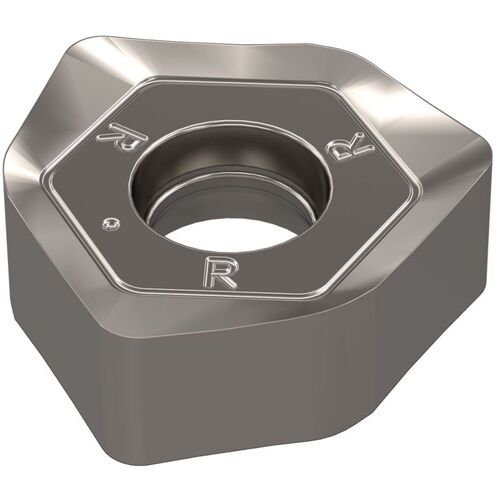

XNGJ0704ANFNLDJ3W THM-U INSERT
Milling Insert; 0.545″ Length × 0.176″ Thickness ; THM-U ; Carbide ; Uncoated
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 120° Hexagon |
| Cutting Edge Length (L) | 0.545″ | Insert Style | XNGJ |
| Corner Radius (RE) | 0.051″ | Insert Size | 704 |
| Depth of Cut Maximum (APMX) | 0.267″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 0.5448″ | Chip Breaker Type | LD |
| Inscribed Circle Diameter (IC) | 1/2″ | Hole Diameter | 0.197″ |
| Insert Thickness (S) | 0.176″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 120 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 3 |
| Grade | THM-U |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.02
