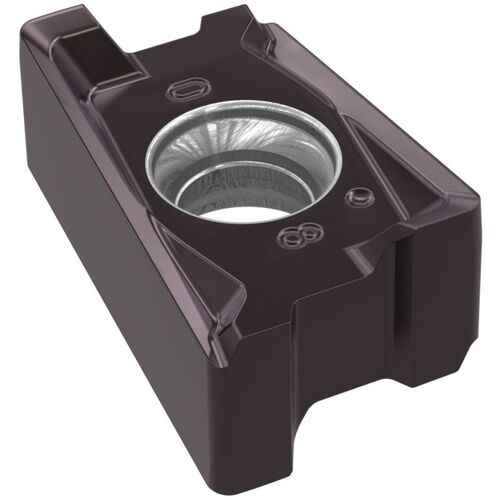

XNGU1502SRMM WP25PM INSERT
Milling Insert; 0.638″ Length × 0.394″ Width × 0.271″ Thickness ; WP25PM ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Rectangle |
| Cutting Edge Length (L) | 0.638″ | Insert Style | XNGU |
| Corner Radius (RE) | 0.0314″ | Insert Size | 1502 |
| Depth of Cut Maximum (APMX) | 0.602″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.394″ | Chip Breaker Type | MM |
| Inscribed Circle Diameter (IC) | 0.394″ | Hole Diameter | 0.183″ |
| Insert Thickness (S) | 0.271″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Double sided Inserts |
| Coating | AlTiN | Number of Cutting Edges | 4 |
| Grade | WP25PM |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.022
