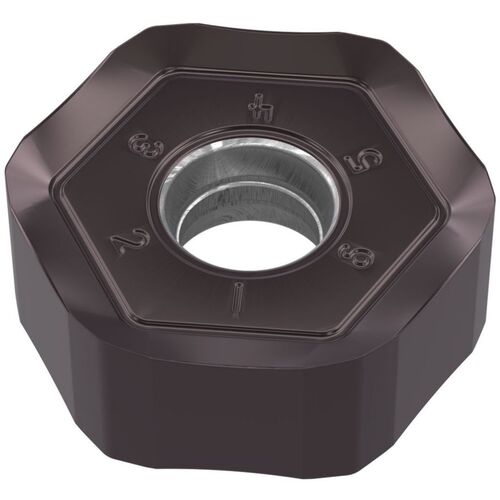

HNPJ0905ANSNGD TN6520 M1200 INSERT
Milling Insert; HNPJ535ANSNGD TN6520 TN6520 0.338″ Length × 7/32″ Thickness ; Carbide ; ALOX-SN
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Cast Iron | | Shape | 120° Hexagon |
| Cutting Edge Length (L) | 5/8″ | Insert Style | HNPJ |
| Corner Radius (RE) | 0.047″ | Insert Size | 905 |
| Depth of Cut Maximum (APMX) | 0.338″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 5/8″ | Chip Breaker Type | GD |
| Inscribed Circle Diameter (IC) | 5/8″ | Hole Diameter | 0.197″ |
| Insert Thickness (S) | 7/32″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 120 Degrees | Tool Type | Double sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 12 |
| Grade | TN6520 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.038
