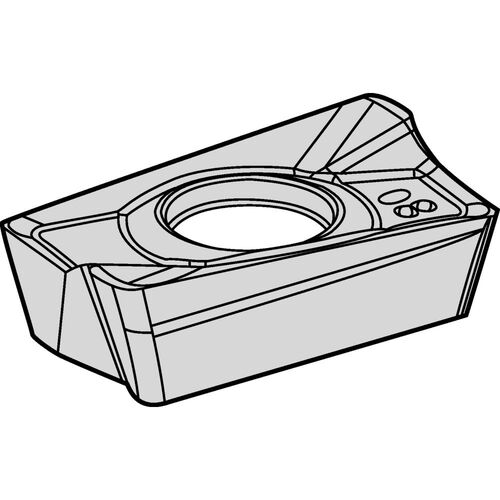

APPT160432PDERMM TN6540 SCREW-ON INSERT
Milling Insert; 0.664″ Length × 0.371″ Width × 0.207″ Thickness ; TN6540 ; Carbide
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Shape | 90° Parallelogram |
| Cutting Edge Length (L) | 0.664″ | Insert Style | APPT |
| Corner Radius (RE) | 1/8″ | Insert Size | 160432 |
| Depth of Cut Maximum (APMX) | 0.664″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.371″ | Chip Breaker Type | MM |
| Inscribed Circle Diameter (IC) | 0.3716″ | Hole Diameter | 0.173″ |
| Insert Thickness (S) | 0.207″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
| Grade | TN6540 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.016
