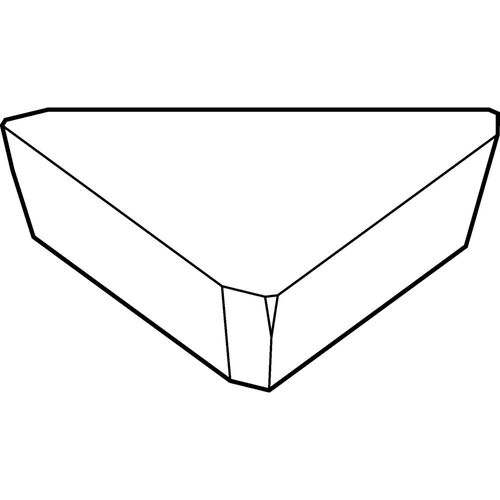

TPKN1603PDR TN7525 KENDEX C-CLAMP INSERT
Milling Insert; TPKN1603PDR TN7525 TN7 × 1/8″ Thickness ; Carbide ; TiN
| Corner Radius (RE) | 0.027″ | Shape | Triangle |
| Depth of Cut Maximum (APMX) | 0.65″ | Insert Style | TPKN |
| Inscribed Circle Diameter (IC) | 3/8″ | Corner Chamfer Width (CHW) | 0.027″ |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Cutting Edge Material | Carbide |
| Grade | TN7 | Number of Cutting Edges | 3 |
Product Features
| Country of Origin | Germany |
