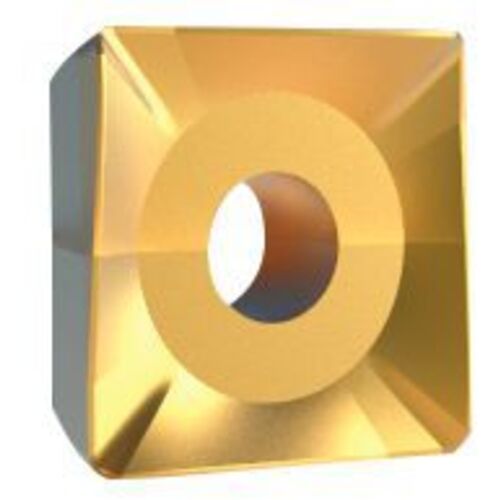

SDMX432RMM TN6525 INSERT
Milling Insert; 1/2″ Length × 3/16″ Thickness ; TN6525 ; Carbide
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | | Shape | Square |
| Cutting Edge Length (L) | 1/2″ | Insert Style | SDMX |
| Corner Radius (RE) | 1/32″ | Insert Size | 120408 |
| Depth of Cut Maximum (APMX) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 1/2″ | Chip Breaker Type | MM |
| Inscribed Circle Diameter (IC) | 1/2″ | Hole Diameter | 0.173″ |
| Insert Thickness (S) | 3/16″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 4 |
| Grade | TN6525 |
Product Features
| Country of Origin | Germany |
