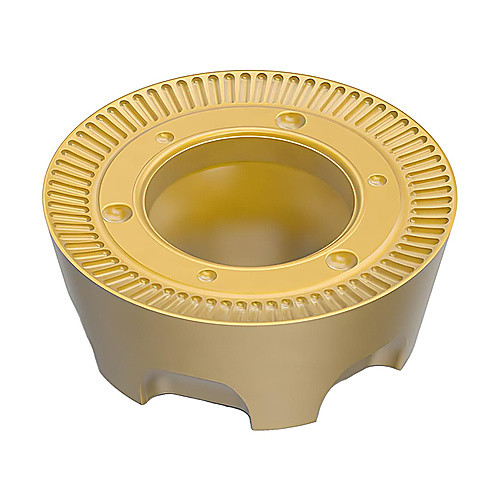

RPHT1204MOT-6-ME07 GRADE F40M MILLING INSERT
Milling Insert; 0.4724″ Length × 0.4724″ Width × 4.76 mm Thickness ; F40M ; Carbide ; | TiN | TiAlN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | F40M |
| Cutting Edge Length (L) | 0.4724″ | Shape | Round |
| Corner Radius (RE) | 0.2362″ | Insert Style | RPHT |
| Depth of Cut Maximum (APMX) | 0.2362″ | Insert Size | 1204 |
| Insert Width (W1) | 0.4724″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12 mm | Chip Breaker Type | T |
| Insert Thickness (S) | 4.76 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 11 Degrees | Tool Type | Single sided Inserts |
| Coating | | TiN | TiAlN | | Number of Cutting Edges | 6 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.011
