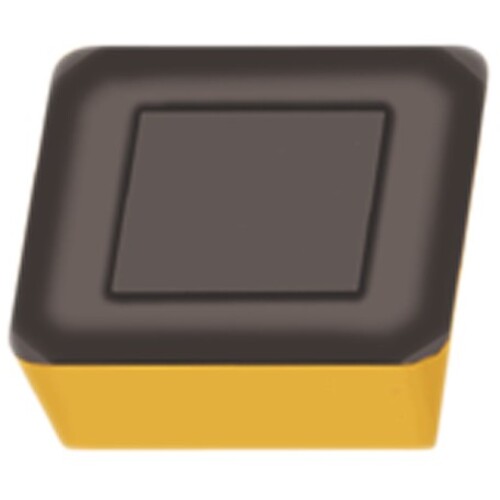

SPNT060304 Grade WKM
Milling Insert; 6.35 mm Length × 6.35 mm Width × 3.18 mm Thickness ; WKM ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Shape | Square |
| Cutting Edge Length (L) | 6.35 mm | Insert Style | SPNT |
| Corner Radius (RE) | 0.4 mm | Insert Size | 60304 |
| Depth of Cut Maximum (APMX) | 6 mm | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 6.35 mm | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 6.35 mm | Series/List # | SPNT-WKM |
| Insert Thickness (S) | 3.18 mm | Hole Diameter | 2.8 mm |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Single sided Inserts |
| Grade | WKM | Number of Cutting Edges | 4 |
Product Features
| Family Description | SPNT060304 WKM | Country of Origin | Germany |
Shipping Info
Package Weight
0.057
