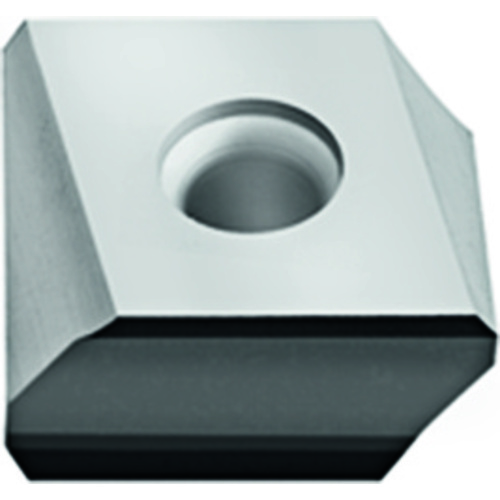

LNKU2010DPR-F57T Grade WKP35S
Milling Insert; 20 mm Length × 15 mm Width × 10.5 mm Thickness ; WKP35S ; Carbide ; | TiCN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Insert Style | LNKU |
| Cutting Edge Length (L) | 20 mm | Insert Size | 2010 |
| Corner Radius (RE) | 0.6 mm | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 15 mm | Chip Breaker Type | U |
| Inscribed Circle Diameter (IC) | 20 mm | Series/List # | LNKU-WKP35S |
| Insert Thickness (S) | 10.5 mm | Hole Diameter | 5.5 mm |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | Al2O3 | | Tool Type | Double sided Inserts |
| Grade | WKP35S | Number of Cutting Edges | 4 |
| Shape | Rectangle |
Product Features
| Family Description | LNKU2010DPR-F57T WKP35S | Country of Origin | Germany |
Shipping Info
Package Weight
0.049
