ODHT0504ZZN-G88 WK10

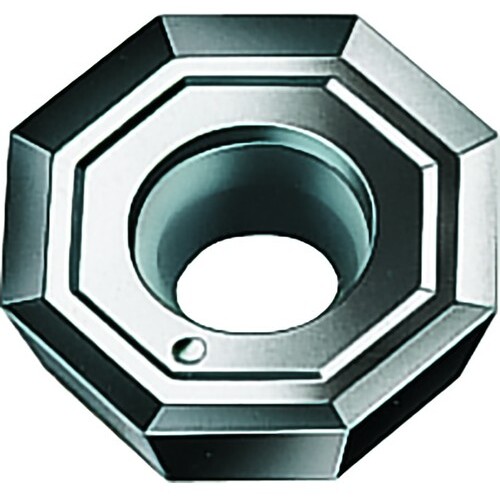

Milling Insert; 5.26 mm Length × 5 mm Width × 4.76 mm Thickness ; WK10 ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 135° Octagon |
| Cutting Edge Length (L) | 5.26 mm | Insert Style | ODHT |
| Corner Radius (RE) | 0.8 mm | Insert Size | 504 |
| Depth of Cut Maximum (APMX) | 5.26 mm | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 5 mm | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 12.7 mm | Series/List # | ODHT-WK10 |
| Insert Thickness (S) | 4.76 mm | Hole Diameter | 4.4 mm |
| Insert Included Angle (EPSR) | 135 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Single sided Inserts |
| Grade | WK10 | Number of Cutting Edges | 8 |
Product Features
| Family Description | ODHT0504ZZN-G88 WK10 | Country of Origin | Germany |
Shipping Info
Package Weight
0.152
