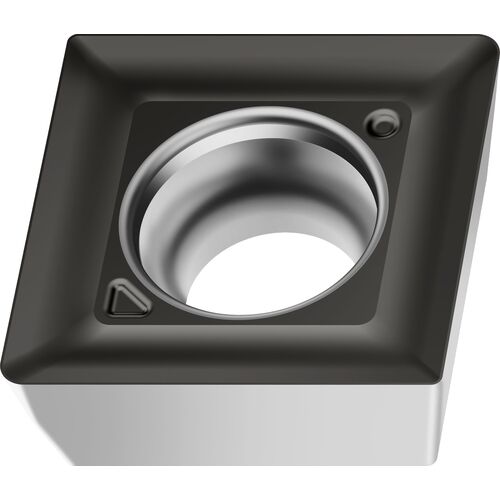

MPMT120408-F57 Grade WKP35S
Milling Insert; 12.7 mm Length × 12.7 mm Width × 4.76 mm Thickness ; WKP35S ; Carbide ; | TiCN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Shape | 86° Diamond |
| Cutting Edge Length (L) | 12.7 mm | Insert Style | MPMT |
| Corner Radius (RE) | 0.8 mm | Insert Size | 120408 |
| Depth of Cut Maximum (APMX) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 12.7 mm | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 12.7 mm | Series/List # | MPMT-WKP35S |
| Insert Thickness (S) | 4.76 mm | Hole Diameter | 5.5 mm |
| Insert Included Angle (EPSR) | 86 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | Al2O3 | | Tool Type | Single sided Inserts |
| Grade | WKP35S | Number of Cutting Edges | 2 |
Product Features
| Family Description | MPMT120408-F57 WKP35S | Country of Origin | Germany |
Shipping Info
Package Weight
0.183
