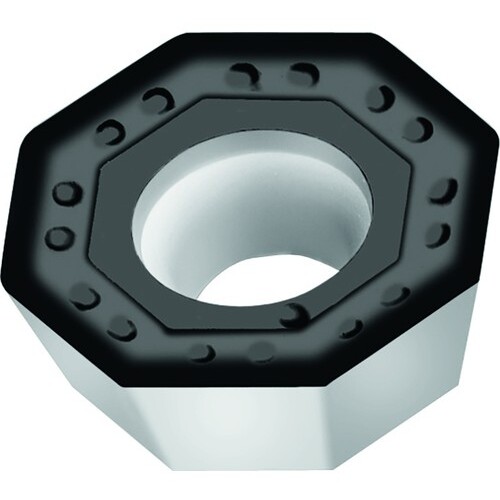

ODHT060512-F57 Grade WKP35S
Milling Insert; 6.58 mm Length × 15.88 mm Width × 5.56 mm Thickness ; WKP35S ; Carbide ; | TiCN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Shape | 135° Octagon |
| Cutting Edge Length (L) | 6.58 mm | Insert Style | ODHT |
| Corner Radius (RE) | 1.2 mm | Insert Size | 60512 |
| Depth of Cut Maximum (APMX) | 0.259″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 15.88 mm | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 15.88 mm | Series/List # | ODHT-WKP35S |
| Insert Thickness (S) | 5.56 mm | Hole Diameter | 5.5 mm |
| Insert Included Angle (EPSR) | 135 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | Al2O3 | | Tool Type | Single sided Inserts |
| Grade | WKP35S | Number of Cutting Edges | 8 |
Product Features
| Family Description | ODHT060512-F57 WKP35S | Country of Origin | Germany |
Shipping Info
Package Weight
0.262
