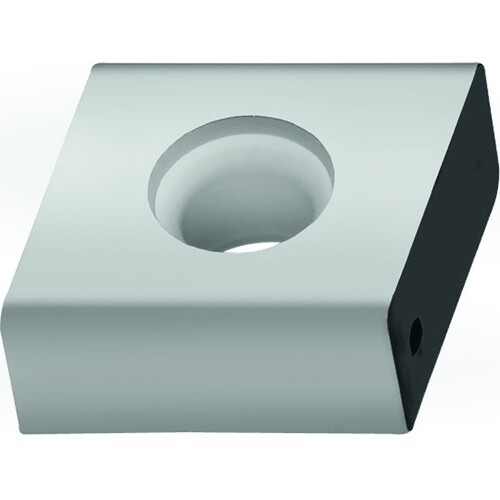

CNMQ080508-A57T Grade WAK15
Milling Insert; 8 mm Length × 9 mm Width × 5 mm Thickness ; WAK15 ; Carbide ; | TiCN | TiN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Insert Style | CNMQ |
| Cutting Edge Length (L) | 8 mm | Insert Size | 80508 |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 9 mm | Chip Breaker Type | Q |
| Inscribed Circle Diameter (IC) | 5/16″ | Series/List # | CNMQ-WAK15 |
| Insert Thickness (S) | 5 mm | Hole Diameter | 3.4 mm |
| Insert Included Angle (EPSR) | 80 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | TiN | Al2O3 | | Tool Type | Double sided Inserts |
| Grade | WAK15 | Number of Cutting Edges | 2 |
| Shape | 80° Diamond |
Product Features
| Family Description | CNMQ080508-A57T WAK15 | Country of Origin | Germany |
Shipping Info
Package Weight
0.161
